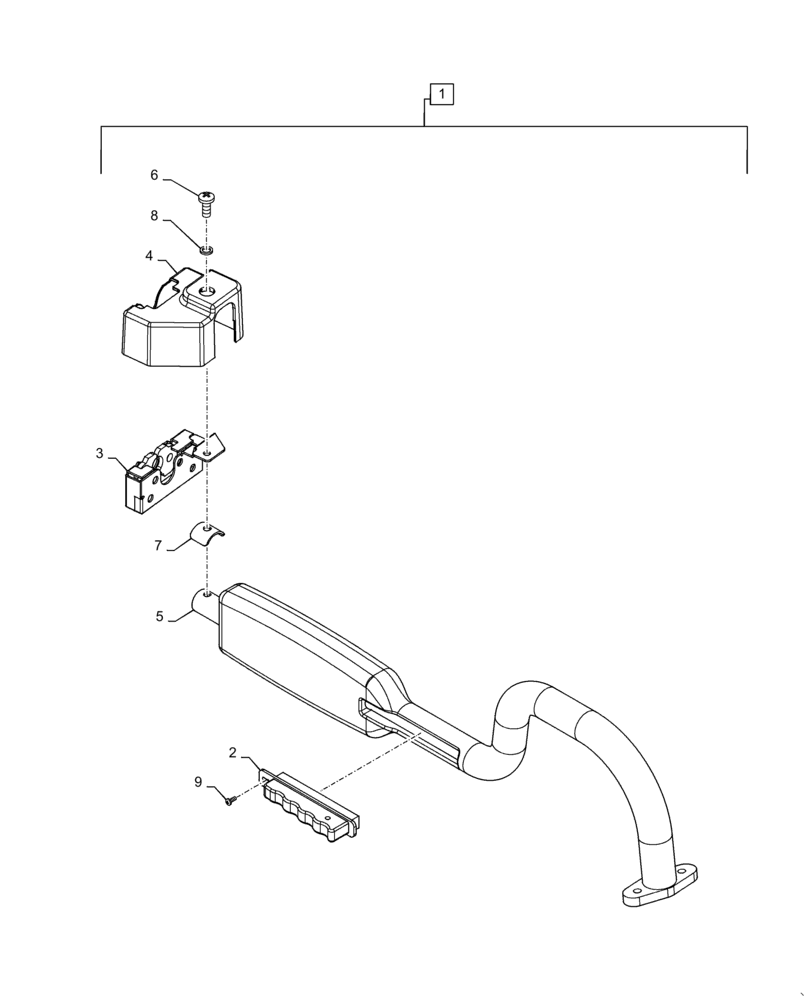

Запчасти Case IH 8230 (90.154.AA[04]) - VAR - 425357 - LH CAB DOOR, DOOR HANDLE, INSIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84067947

DOOR HANDLE

Inner, Assy, Incl 2 - 9

1шт.

2

84320301

HANDLE

Inner

1шт.

3

86520782

LATCH

Interior, Double Rotor

1шт.

4

84067944

COVER

Latch, LH

1шт.

5

86521008

HANDLE

Grab, LH

1шт.

6

44317

SCREW,Cross Pan Hd, M8 x 16

1шт.

7

84320299

CAP COVER

Bearing

1шт.

8

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

1шт.

9

86585711

SCREW,Phillips Drive, Pan HD, M6 x 10mm, Cl 4.8

Latch, Door, LH

1шт.
