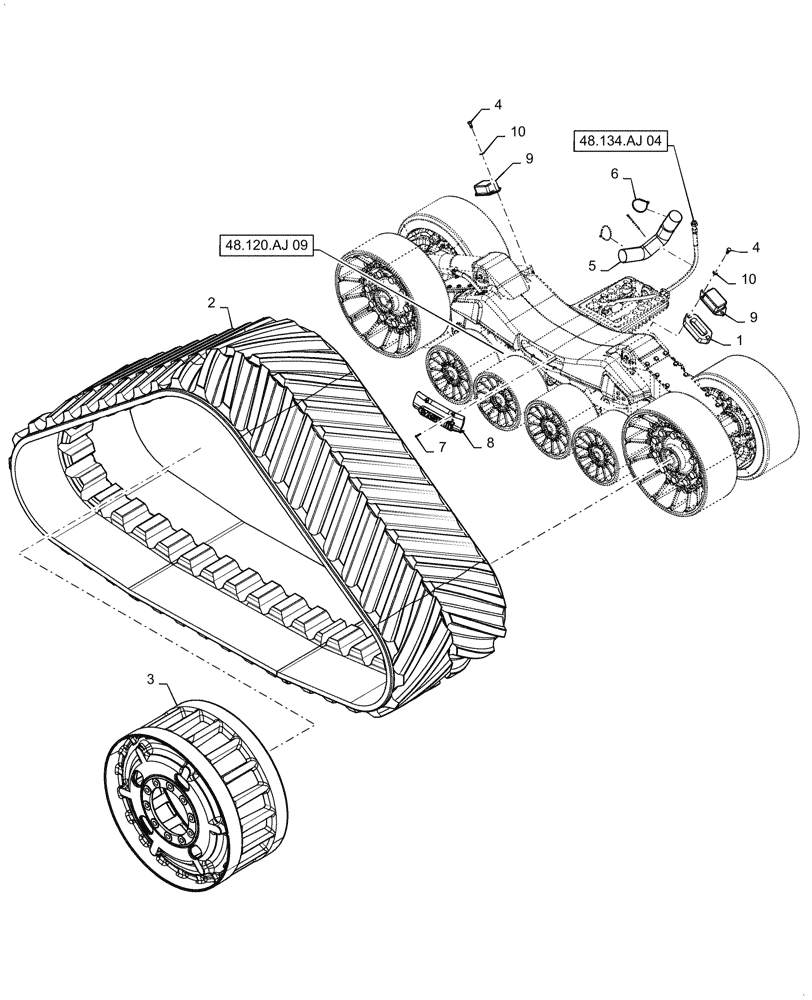

Запчасти Case IH 8240 (48.100.AE[12]) - VAR - 415354 - TRACK ASSY, 34" (48) - TRACKS & TRACK SUSPENSION

1

47564535

BLOCK

Rear

1шт.

2

47671019

RUBBER TRACK

Belt, 34"

1шт.

3

47520141

WHEEL

Drive

1шт.

4

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.

5

84193200

HOSE PROTECTION

Sleeve

1шт.

6

86566990

CABLE TIE,292mm OAL x 4.8mm W

3шт.

7

47532492

EMBLEM

Cover Access

1шт.

8

47558900

SCREW,Hex Flat Countersunk, M6 x 1 x 35mm

4шт.

9

87428948

BUMPER,58mm ID x 115mm OD x 5mm Thk

Undercarriage

2шт.

10

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.
