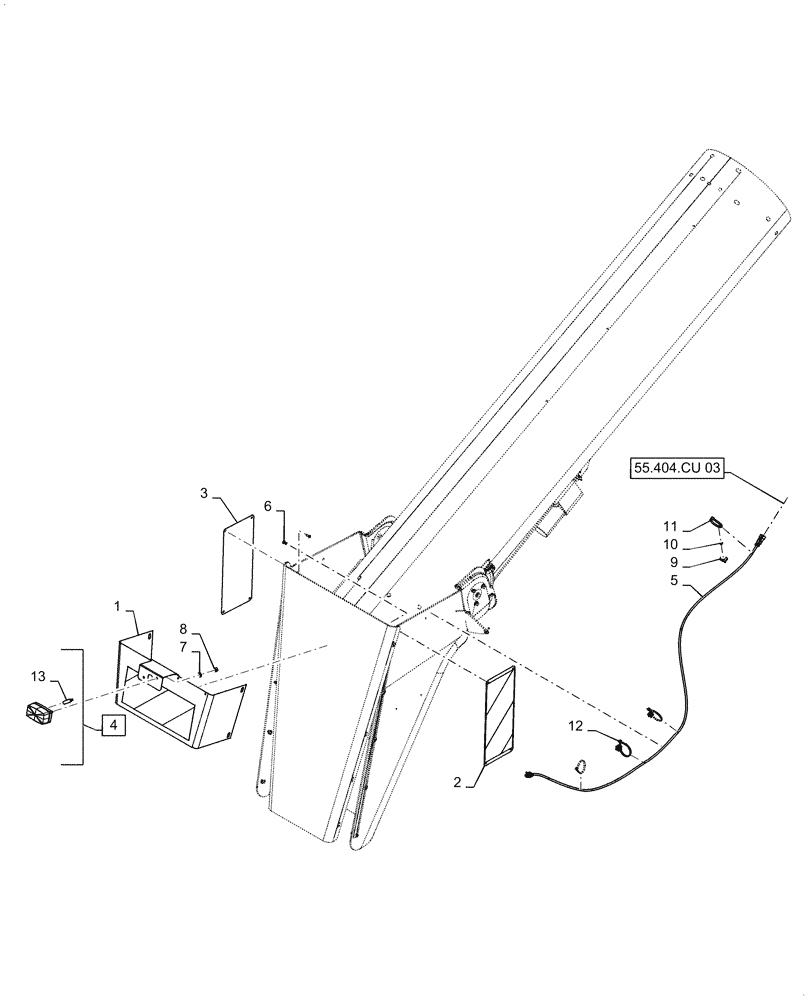

Запчасти Case IH 8240 (80.180.AQ[09]) - VAR - 425566 - DISCHARGE SPOUT, PIVOT, LC UNLOAD , WARNING SIGN (80) - CROP STORAGE/UNLOADING

1

84473182

BRACKET

Unload Spout, Front

1шт.

2

84402683

BRACKET

Unload Spout, LH

1шт.

3

84402684

BRACKET

Unload Spout, RH

1шт.

4

84429842

LAMP

Unload Tube Marker, Red, Incl 13

1шт.

5

47501339

WIRE HARNESS

Unload Tube Marker

1шт.

6

445394

RIVET,Pop, 3/16" x 1/2" OAL

8шт.

7

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

8

43440

LOCK NUT,M5 x .8, Cl 8

2шт.

9

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

1шт.

10

325911

RIVET,Pop, 4.75mm OD x 7.4mm L

1шт.

11

86566989

CABLE TIE,208mm L

2шт.

12

87694057

CABLE TIE,200mm L

2шт.

13

86616250

BULB,12V, 5W

1шт.
