(25.400.AD[03]) - VAR - 425399, 425529, 425528, 425273, 425431, 425272 - MOUNTING, FRONT AXLE

Запчасти Case IH 8240 (25.400.AD[03]) - VAR - 425399, 425529, 425528, 425273, 425431, 425272 - MOUNTING, FRONT AXLE (25) - FRONT AXLE SYSTEM

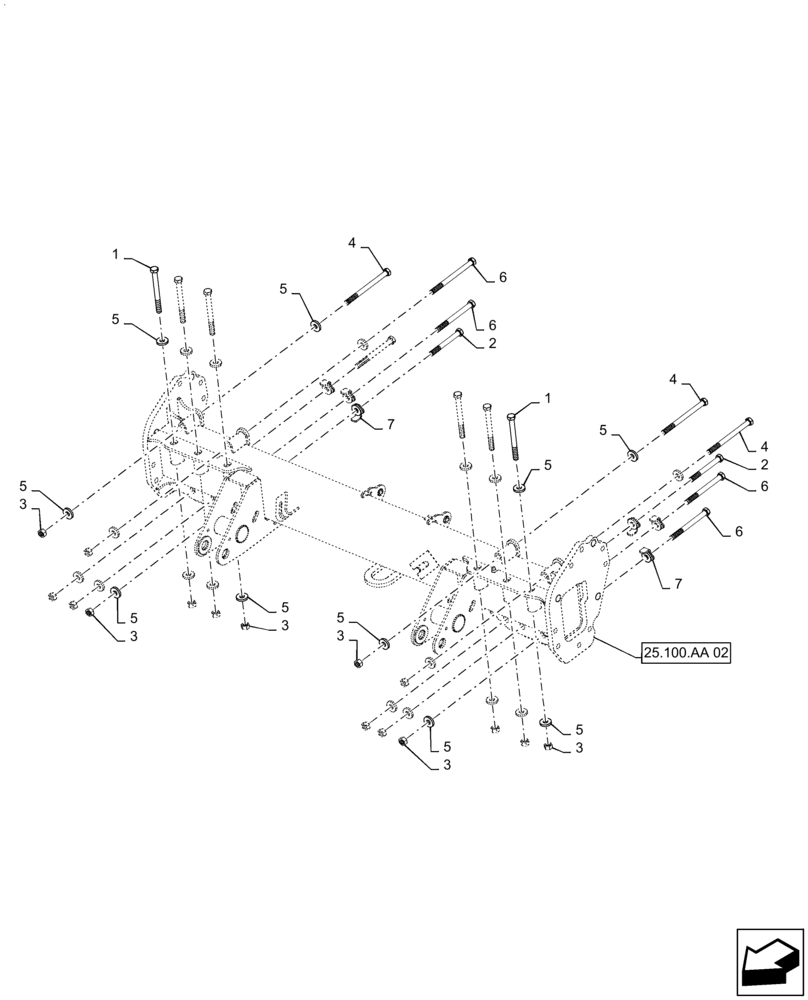

Схема запчастей Case IH 8240 - (25.400.AD[03]) - VAR - 425399, 425529, 425528, 425273, 425431, 425272 - MOUNTING, FRONT AXLE (25) - FRONT AXLE SYSTEM
1
4
5
4
1
6
2
25.100.aa 02
7
3
3
6
5
2
6
5
3
5
3
5
5
5
3
6
7
5
3
4
5
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

381523

BOLT,Hex, M20 x 2.5 x 210mm OAL, Cl 8.8

6шт.

2

412290

BOLT,M20 x 2.5mm x 180mm, Cl 8.8

2шт.

3

9706694

NUT,Hex, M20, Cl 8

16шт.

4

84037083

BOLT,Hex, M20 x 260mm OAL, Cl 8.8

4шт.

5

84439733

WASHER,20.5mm ID x 49mm OD x 8mm Thk

26шт.

6

44085

BOLT,Hex, M20 x 220mm OAL, Cl 8.8

4шт.

7

47699389

WASHER,M20.5 x 49mm x 8.0mm H

6шт.
