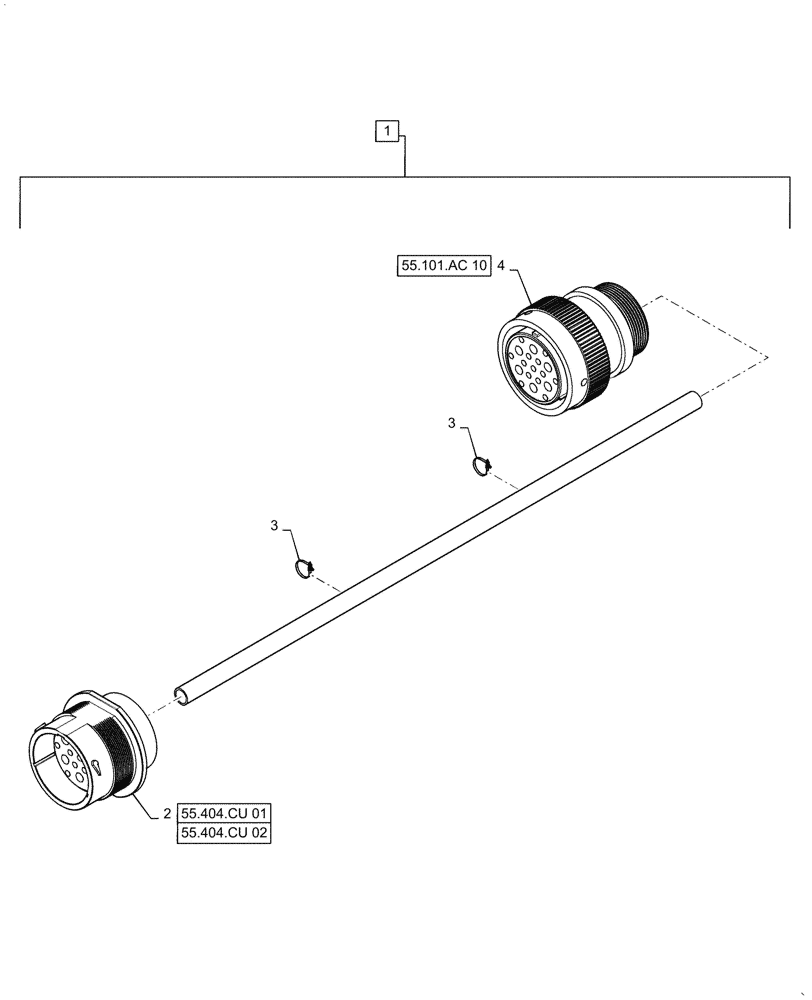

Запчасти Case IH 8240 (55.426.AH[03]) - WIRE HARNESS, GRAIN TANK TO UNLOADING TUBE (55) - ELECTRICAL SYSTEMS

1

47501325

WIRE HARNESS

Grain Tank To Unload Tube, Incl 2 - 4

1шт.

2

87696098

ELEC CONNECTOR

Unload Tube, X-640

1шт.

2

84068583

PLUG,12 - 16 Ga, White

Unload Tube, X-640

1шт.

2

87695623

ELEC. TERMINAL PIN

Unload Tube, X-640

10шт.

2

87704524

ELEC CONNECTOR,Pin, Size 12

Terminal, Unload Tube, X-640

4шт.

3

87741307

SECURING STRAP

Fir Tree

2шт.

4

87703942

ELEC CONNECTOR

LH Main Frame, X-635

1шт.

4

84068583

PLUG,12 - 16 Ga, White

LH Main Frame, X-635

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

LH Main Frame, X-635

10шт.

4

87695923

TERMINAL

LH Main Frame, X-635

4шт.
