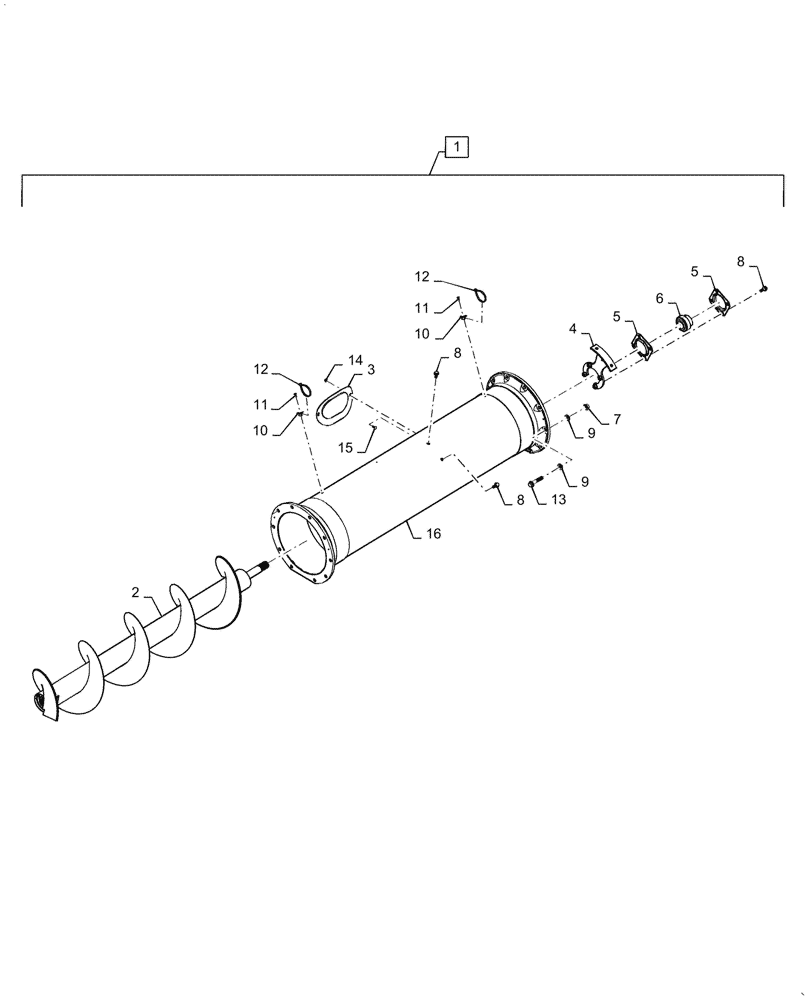

Запчасти Case IH 8240 (88.100.80[06]) - DIA KIT, UNLOADING TUBE, STANDARD , EXTENSION, HIGH CAPACITY (88) - ACCESSORIES

1

84547988

UNLOADING TUBE

Extension, Standard Wear, High Capacity, Incl 2 - 16

1шт.

2

47395184

AUGER

Unload Tube, Extension, Short, Serial Range: -YGG231218

1шт.

2

47910821

AUGER

Unload Tube, Extension, Short, 8 Spline, Start Serial: YGG231219

1шт.

3

84307048

CAP COVER

Access, Unload Tube

1шт.

4

47392729

BRACKET

Supporting, Unload Tube

1шт.

5

86979948

FLANGE

85mm ID

2шт.

6

84416910

BALL BEARING,41.27mm ID x 85mm OD x 22mm W

1шт.

7

86512498

FLANGE NUT,M16 x 2, Cl 10

10шт.

8

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

6шт.

9

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

20шт.

10

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

Wire Tie

4шт.

11

445394

RIVET,Pop, 3/16" x 1/2" OAL

4шт.

12

86566989

CABLE TIE,208mm L

5шт.

13

47411044

FLANGE BOLT,M16 x 95.4mm, Full Thd, Cl 10.9

10шт.

14

86507066

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

15

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

16

84536432

UNLOADING TUBE

Extension, High Capacity

1шт.
