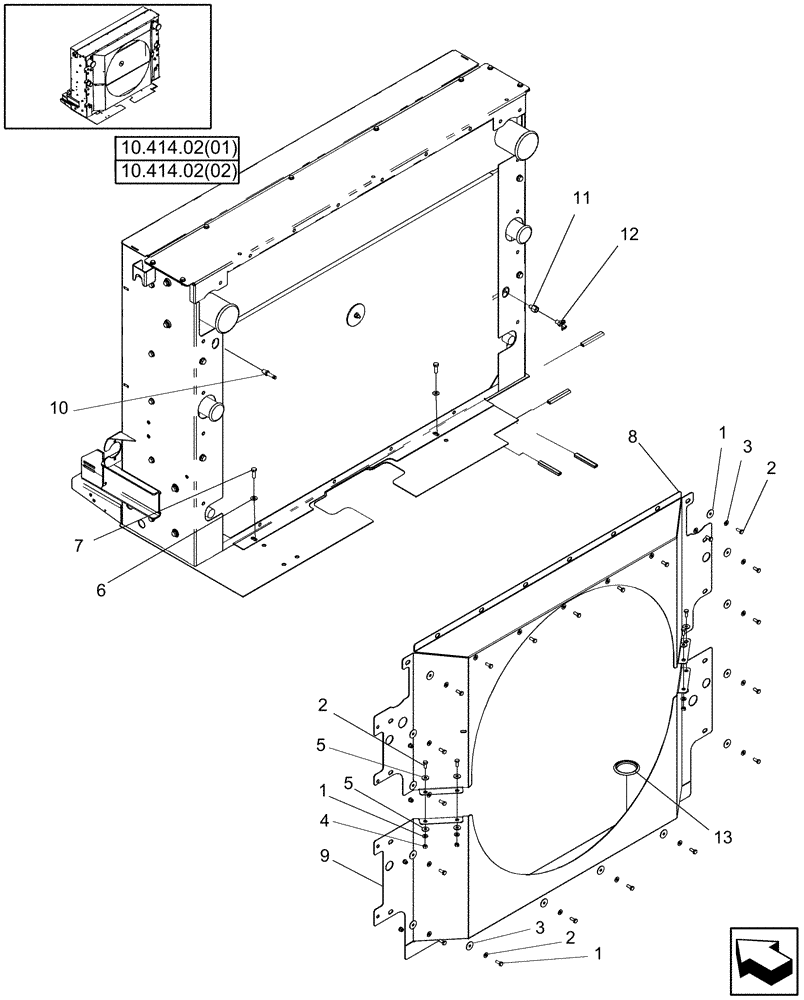

Запчасти Case IH 9120 (10.406.08[03]) - FAN SHROUD - 9120 (10) - ENGINE

1

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

17шт.

2

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

17шт.

3

86979986

WASHER,0.34" ID x 1.25" OD x 0.06" Thk

7шт.

4

9706690

NUT,M8 x 1.25, Cl 8

4шт.

5

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

8шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

7

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

8

87495322

SHROUD

Top Fan

1шт.

9

87689611

PLATE ASSY.

Shroud, Bottom Fan

1шт.

10

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

1шт.

11

87306797

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

1шт.

12

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.

13

87000778

PLUG,89mm OD

2шт.
