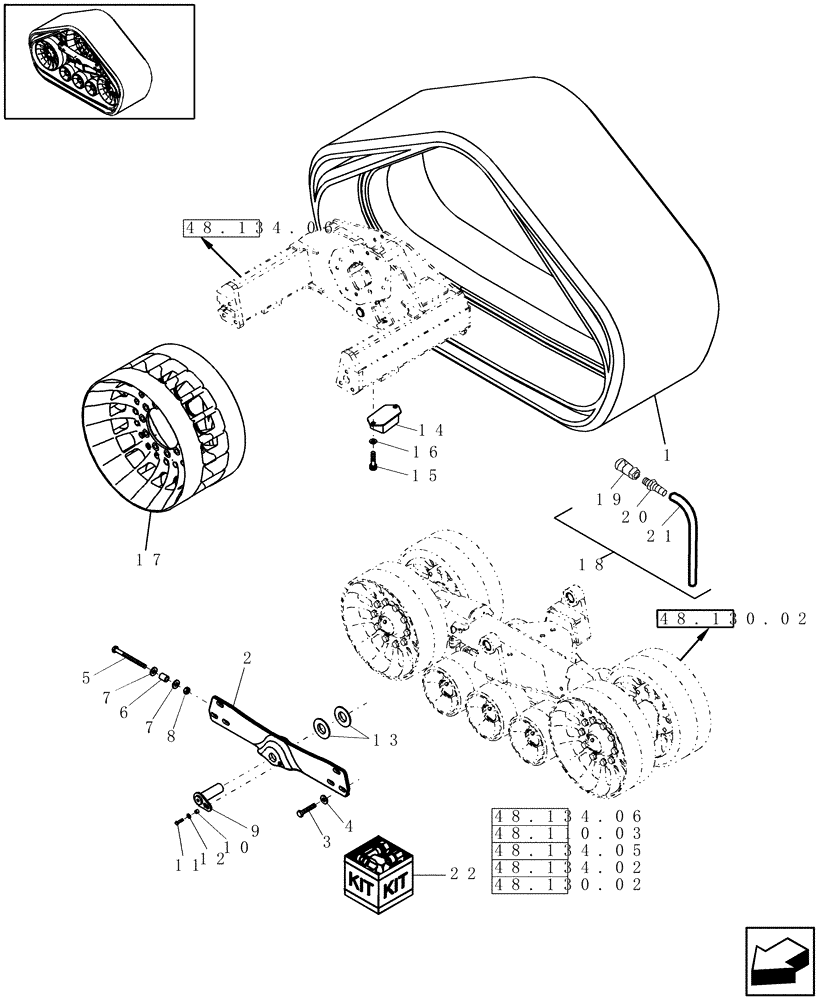

Запчасти Case IH 9120 (48.100.02) - TRACK DRIVE - RUBBER TRACK; NA ONLY - 8120, 9120 (48) - TRACKS & TRACK SUSPENSION

1

87734600

RUBBER TRACK

W = 36"

2шт.

2

87451761

END PLATE

2шт.

3

9780129

BOLT,Hex, M24 x 50mm, Cl 10.9

12шт.

4

87016608

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

12шт.

5

87439071

BOLT,Hex, M20 x 2.5 x 130mm, Cl 10.9

2шт.

6

87439070

SPACER

2шт.

7

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

4шт.

8

829-4420

THIN NUT,M20 x 2.5, Cl 05

2шт.

9

87423822

PIN,57.06mm OD x 167mm L

4шт.

10

87423819

SPACER

4шт.

11

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

12

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

13

87423202

THRUST BEARING,58mm ID x 115mm OD x 5mm Thk

4шт.

14

87428948

BUMPER,58mm ID x 115mm OD x 5mm Thk

4шт.

15

86836488

HEX SOC SCREW,M12 x 25mm, Cl 12.9

8шт.

16

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

17

87395733

WHEEL

Machined, Track Drive

1шт.

18

31-3183

HOSE

Assembly, Pressure Relief; Incl Refs 19 Thru 21

1шт.

19

233303A1

COUPLING

Quick, Female

1шт.

20

217-125

FITTING,3/8" Hose Barb x 1/4" Male NPTF

Straight, 3/8 barb end x 1/4 inch PT

1шт.

21

32-12X

LARGE HOSE

HOSE,LARGE 914 mm (36 inch) long; Cut From 20' Bulk Roll

1шт.

22

84130512

SERVICE KIT

Combine Track; Incl Refs 1 Thru 21

1шт.
