1
87736746
A/C HOSE
HVAC, Cab To Compressor Suction; L = 5195 mm
1шт.
2
87684281
A/C HOSE
HOSE,LARGE HVAC Uses Oring 128485A1
1шт.
3
87736742
HOSE ASSY.
HVAC, Dryer To Cab; L = 475 mm
1шт.
4
87000220
HOSE CLAMP
1шт.
5
86997299
HEATER HOSE,15.5mm ID x 15240mm L
Return; L = 179"
1шт.
Cut to Fit
1шт.
6
86997299
HEATER HOSE,15.5mm ID x 15240mm L
Supply; L = 191.1"
1шт.
Cut to Fit
1шт.
7
301803R1
SHUT-OFF VALVE
2шт.
8
87000226
HOSE CLAMP
8шт.
9
84334474
FITTING,1/2"-14 M x 3/8"-18 Fem
1шт.
10
87105840
RECEIVER-DRYER
1шт.
10
87280717
RECEIVER-DRYER
1шт.
Scandinavia Only
1шт.
11
86978776
SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"
2шт.
12
87105841
BRACKET
2шт.
13
87684283
LARGE HOSE
HOSE,LARGE Uses Oring 128483A1
1шт.
14
217-1096
ELBOW,90 Degree, 1/2"-14 Male x 3/8"-18 Female
1шт.
15
9827902
CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type
3шт.
16
86505868
SERRATED NUT,Hex, M8 x 1.25, Cl 8
2шт.
17
87601210
CONDENSER
1шт.
18
87000223
HOSE CLAMP,22mm ID Static x 15mm W, Spring Type
4шт.
19
529070
CABLE TIE,368.3mm L
CABLE STRAP
5шт.
20
87107420
GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk
1шт.
21
412093
SELF-TAP SCREW
1шт.
22
87000227
SWITCH, A/C HIGH PRE
1шт.
23
84607268
SLEEVE
Cover
1шт.
24
412479
BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8
2шт.
25
87703182
BRACKET
Heater Hose
1шт.
26
87703161
BRACKET
Heater Hose
1шт.
28
43442
NUT
3шт.
30
86976974
GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk
1шт.
31
87589867
FLUID
1шт.
33
322358
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
15шт.
35
412650
BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk
2шт.
36
120104
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
11шт.
37
9706690
NUT,M8 x 1.25, Cl 8
3шт.
38
86511146
VALVE,Shrader
Valve
1шт.
39
86511149
CAP
1шт.
40
86511147
CONTROL VALVE
CHARGE HIGH SIDE
1шт.
41
86511148
CAP
1шт.

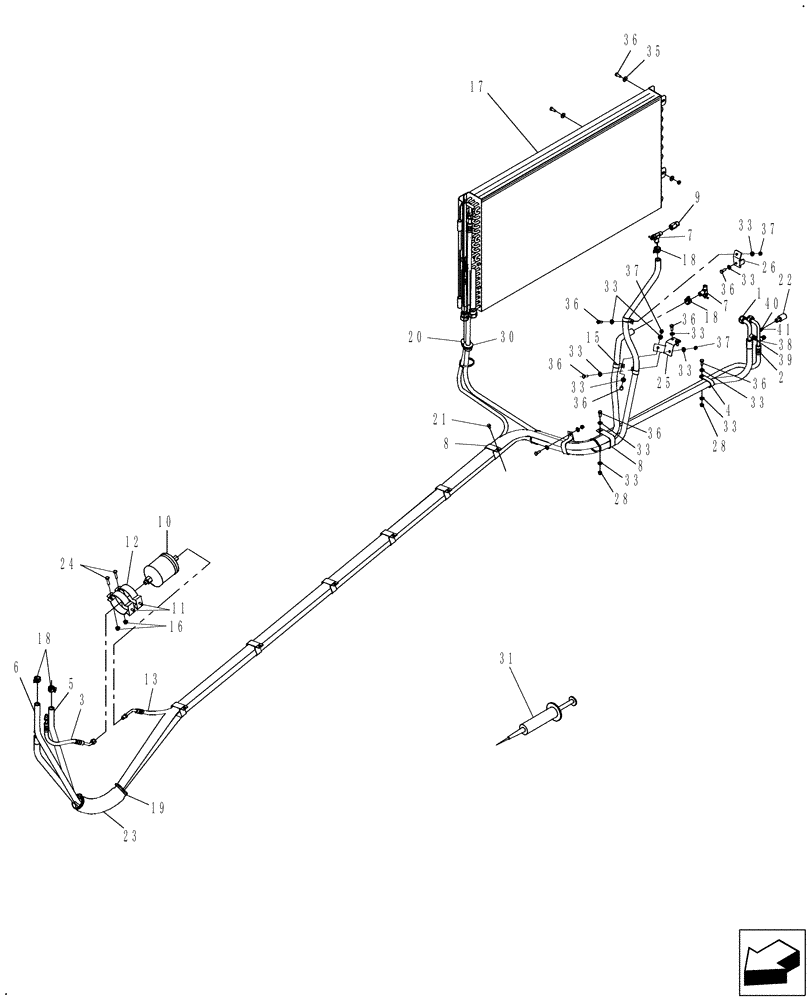

![Схема запчастей Case IH 9120 - (50.200.04[03]) - A/C & HEATER HOSES CONDENSOR/OIL COOLER- 9120 (50) - CAB CLIMATE CONTROL](https://www.partsell.ru/storage/images/caseih/863761.png)
