(55.404.10) - LIGHTS, REAR - STANDARD - FOR NA, LA & AUSTRALIA

Запчасти Case IH 9120 (55.404.10) - LIGHTS, REAR - STANDARD - FOR NA, LA & AUSTRALIA (55) - ELECTRICAL SYSTEMS

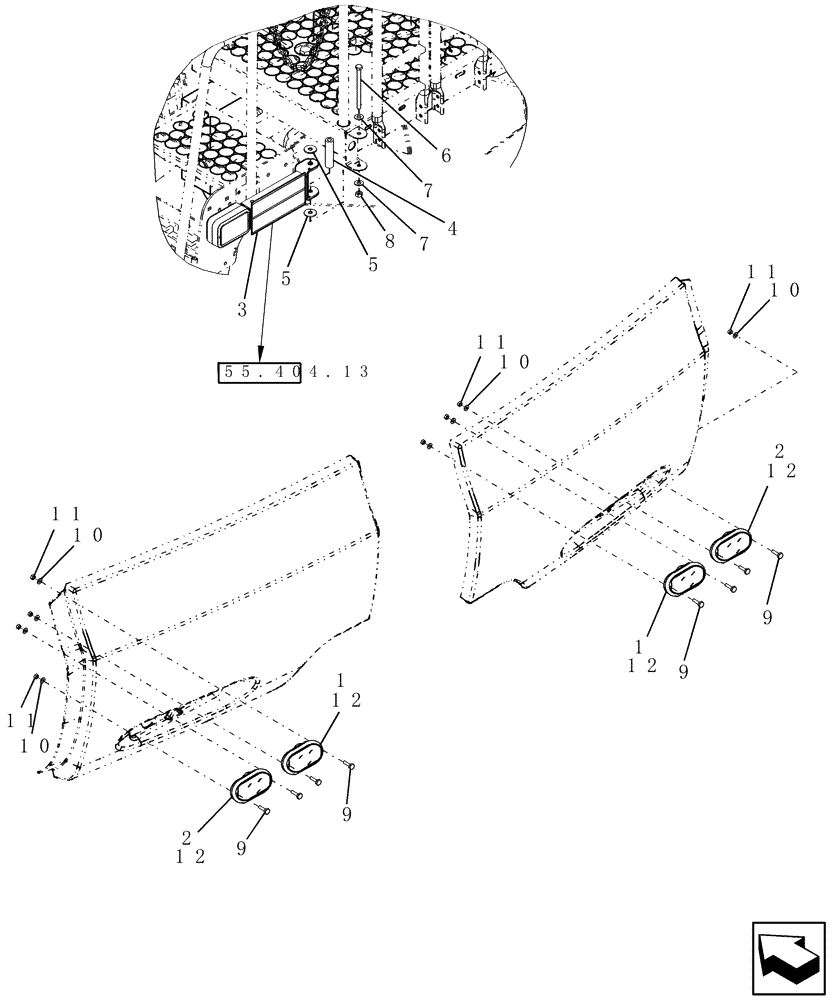

Схема запчастей Case IH 9120 - (55.404.10) - LIGHTS, REAR - STANDARD - FOR NA, LA & AUSTRALIA (55) - ELECTRICAL SYSTEMS
10
9
10
12
9
11
6
8
1
7
4
3
5
2
7
12
10
9
10
55.404.13
1
2
11
11
9
12
5
12
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87627854

LIGHT ASSY.,12V, 27W, Red

Tail/Stop

2шт.

2

87629587

LIGHT ASSY.,12V, 27W, Amber

Turn

2шт.

3

87283298

WARNING LIGHT

1шт.

4

87105383

SPACER,12.7mm ID x 25.4mm OD x 96.4mm L

1шт.

5

86997936

WASHER,12.7mm ID x 38.1mm OD x 3.18mm Thk

2шт.

6

385427

BOLT,Hex, M12 x 1.75 x 150mm, Cl 8.8

1шт.

7

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

8

9706685

NUT,M12 x 1.75, Cl 8

1шт.

9

86502967

SCREW,Phillips Drive, Pan HD, M5 x 30mm, Cl 4.8

8шт.

10

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

8шт.

11

43440

LOCK NUT,M5 x .8, Cl 8

8шт.

12

87106262

BULB

4шт.
