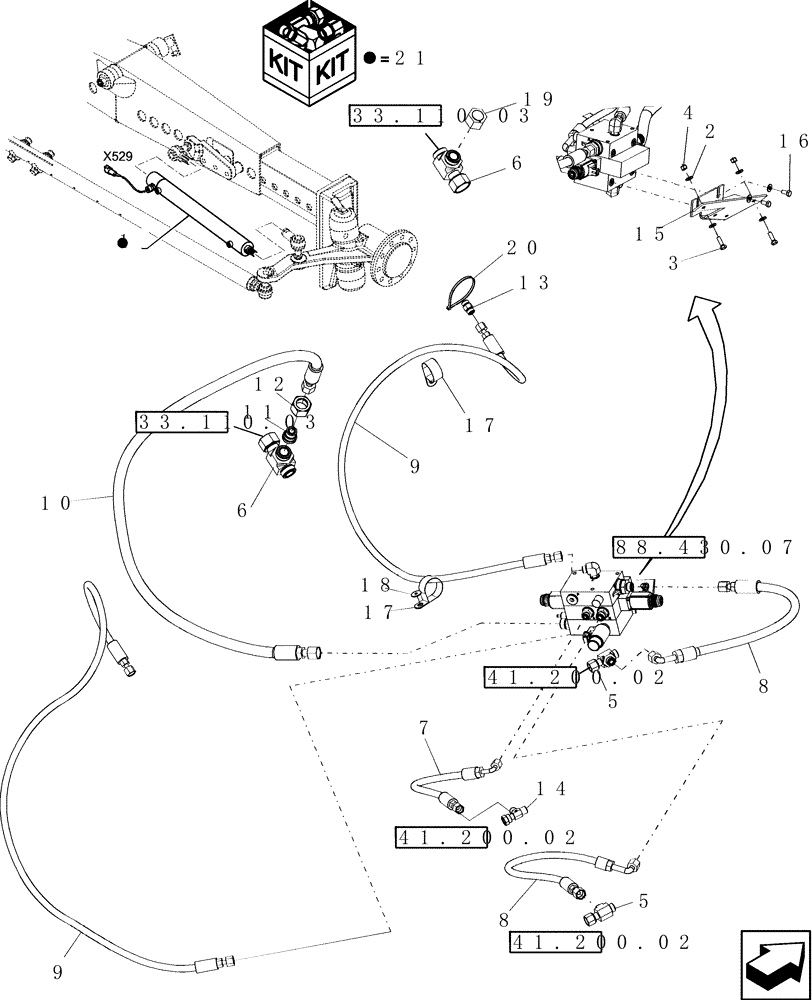

Запчасти Case IH 9120 (88.430.05[02]) - AUTO GUIDANCE-READY, HYDRAULICS - 7120, 8120/8120(LA), 9120 (88) - ACCESSORIES

1

84448270

STEERING CYLINDER

Auto Guidance

1шт.

84370626R

REMAN-HYD CYLINDER

8120 (9/08-),Reman for New P/N 84448270

1шт.

84370626C

CORE-HYD CYLINDER

Return Number

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

3

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

4

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

5

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

2шт.

6

86641295

TEE,1-7/16"-12 ORFS to Swivel

1 7/16"-12

2шт.

7

87563558

HOSE ASSY.

Auto Guidance Steering; L = 800 mm

1шт.

8

84068062

HYDRAULIC HOSE,9.53mm ID x 800mm L, SAE 100R2

Auto Guidance Steering; L = 800 mm

2шт.

9

86623770

HYDRAULIC HOSE,6.40 mm ID x 2200.00 mm, SAE 100R1 AT

Auto Guidance Steering; L = 2200 mm

2шт.

10

87541510

HYDRAULIC HOSE

Auto Guidance Steering; L = 2070 mm, Years: -01-APR-09, Serial Range: -Y9G206251

1шт.

10

84151026

HYD TUBE,16 mm OD

, Start Year: 01-APR-09, Start Serial: Y9G206252

1шт.

11

87541888

REDUCER,1-7/16"-12 Fem ORFS x 1"-14 Male ORFS

1шт.

12

203-905

TUBE NUT,1 7/16"-12 ORFS

1шт.

13

87536726

VALVE

Incl O-Rings (2)

1шт.

13

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

14

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

1шт.

15

87574734

SUPPORT

1шт.

16

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

17

86634189

CLAMP,50.8mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

18

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

19

9847690

CAP,1-7/16" - 12 ORFS

1шт.

20

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

1шт.

21

84455606

SEAL KIT

1шт.
