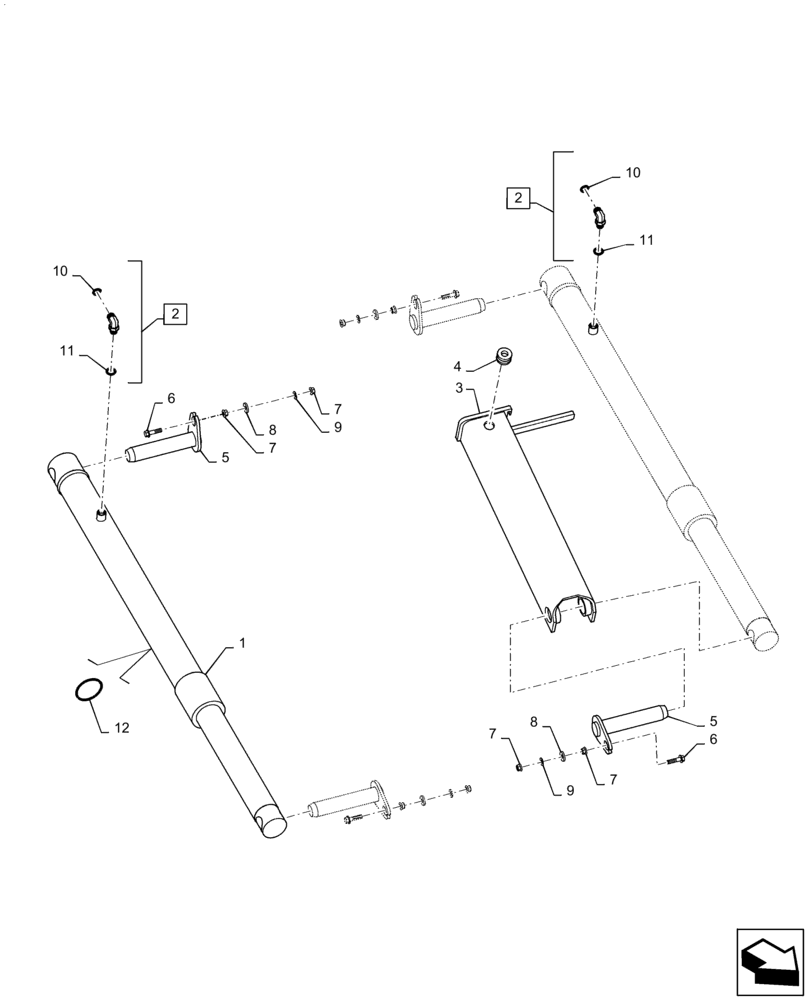

Запчасти Case IH 9230 (35.162.01[01]) - VAR - 722742, 722743, 425546, 722744, 425547, 425070, 425224, 425548, 425225, 425549 -LIFT CYLINDER, FEEDER (35) - HYDRAULIC SYSTEMS

1

87282426

HYDRAULIC CYLINDER,75mm Rod, 525mm Stroke

Feeder, - VAR - 722742, 722744

2шт.

1

87282426R

REMAN-HYD CYLINDER

Feeder, - VAR - 722742, 722744

2шт.

1

87282426C

CORE-HYD CYLINDER

Return Number

2шт.

1

84282579

HYDRAULIC CYLINDER

Feeder, - VAR - 425546, 425547

2шт.

1

84263630

HYDRAULIC CYLINDER,90mm Rod, 525mm Stroke

Feeder, - VAR - 425070, 425224, 425225, 425548, 425549

2шт.

1

84263630R

REMAN-HYD CYLINDER

90mm Rod, 525mm Stroke. Feeder, - VAR - 425070, 425224, 425225, 425548, 425549

2шт.

1

84263630C

CORE-HYD CYLINDER

Return Number

2шт.

2

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Incl 10 - 11

2шт.

3

87564959

CHANNEL

Cylinder Lockout - VAR - 722742, 722744, 425546, 425547

1шт.

3

87732739

CHANNEL

Cylinder Lockout - VAR - 425070, 425224, 425548, 425225, 425549

1шт.

4

87107921

GROMMET,19mm ID x 41mm OD x 30mm Thk

1шт.

5

87282445

PIN,41.27mm OD x 218mm L

VAR - 722742, 722744, 425546, 425547

4шт.

5

87471285

PIN ASSY.,202mm OAL

VAR - 425070, 425224, 425548, 425225, 425549

4шт.

6

9804263

BOLT,M10 x 49.2mm, Cl 8.8

4шт.

7

86050279

FLANGE NUT,M10 x 1.5, Cl 10

8шт.

8

86592700

WASHER,10.5mm ID x 28mm OD x 4mm Thk

4шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

10

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

11

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

12

84299774

SEAL KIT

Services 1, Contains 1 Bearing and 9 Seals, - VAR - 722742, 722744, 425546, 425547

1шт.

12

84299775

SEAL KIT

Services 1, Contains 1 Bearing and 11 Seals, - VAR - 425070, 425224, 425225, 425548, 425549

1шт.
