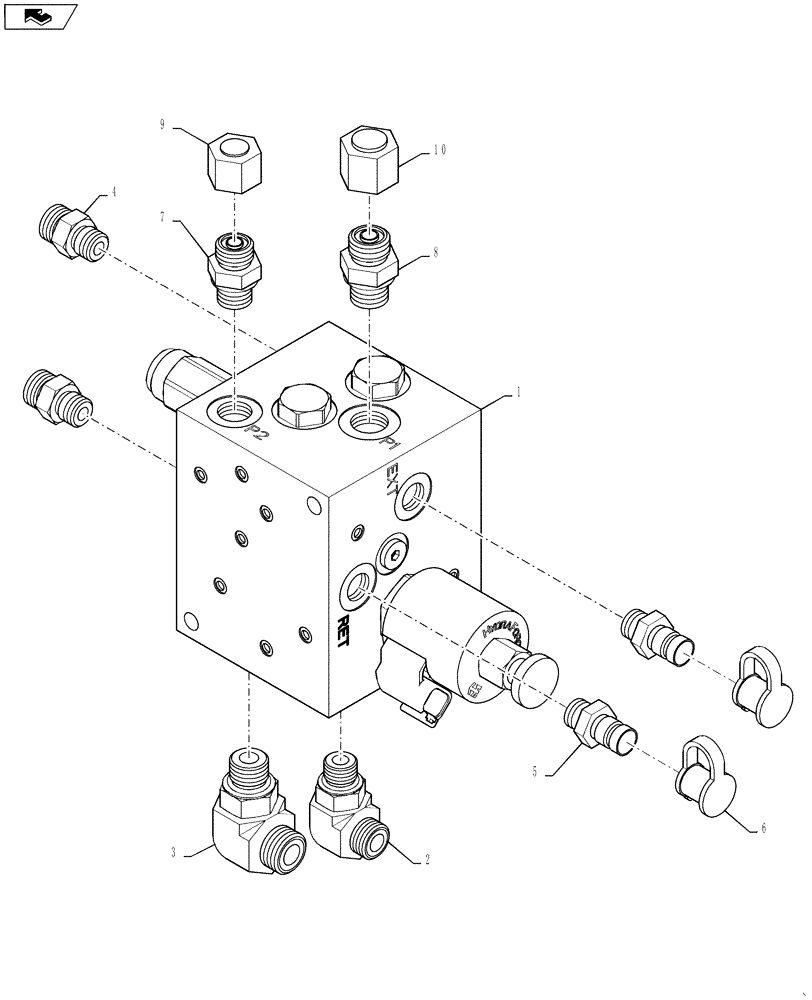

Запчасти Case IH 9230 (35.440.06[01]) - MANIFOLD, HYD, UNLOAD AUGER, COVERS, POWER EXTENSIONS (35) - HYDRAULIC SYSTEMS

1

87485406

HYDRAULIC MANIFOLD

See Page 35.440.06(04)

1шт.

2

86579687

ELBOW,90 Degree, 11/16"-16 x M16 x 1.5 ORB

1шт.

3

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

1шт.

4

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

2шт.

5

84320565

COUPLING,M14 x 1.5

2шт.

6

86502604

DUST CAP

2шт.

7

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

1шт.

8

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

9

9625546

CAP,11/16" - 16 ORFS

1шт.

10

9840575

CAP,13/16" - 16 ORFS

1шт.
