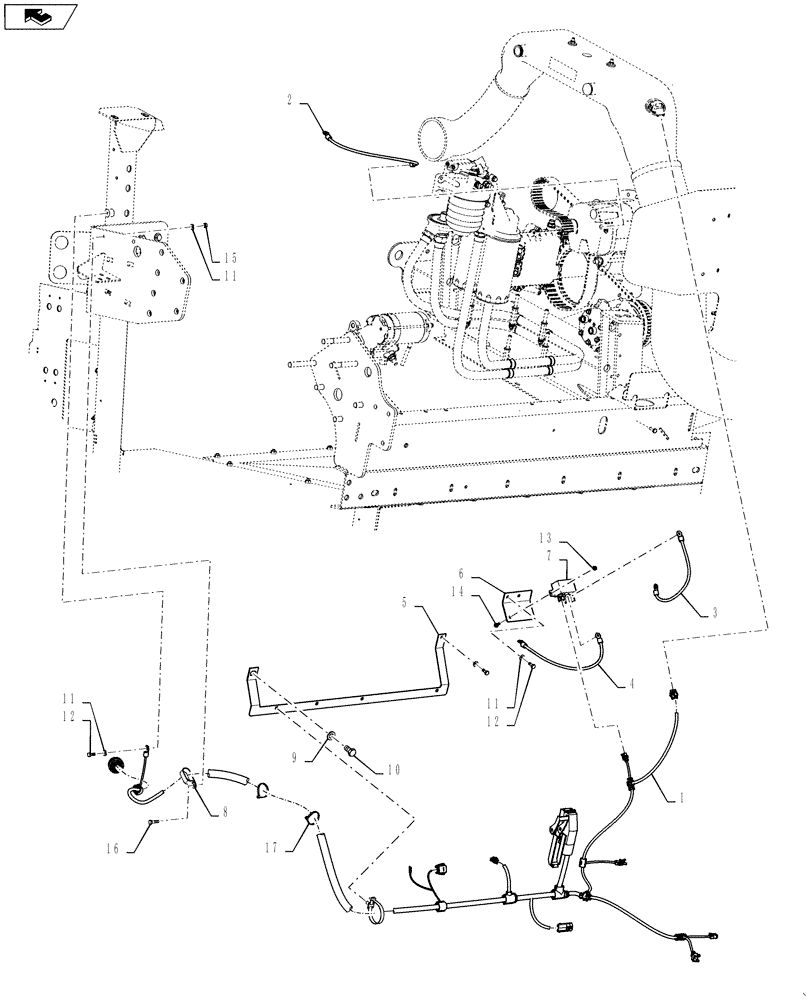

Запчасти Case IH 9230 (55.100.07[02]) - WIRE HARNESS, ENGINE 82/9230 T2/T4 (55) - ELECTRICAL SYSTEMS

1

84229025

WIRE HARNESS

Cursor 13

1шт.

2

86611287

CABLE,490mm L

WIRE Single Wire, 440mm, Eyelet On Each End, Black

1шт.

3

86611286

ELECTRICAL WIRE

WIRE Single Wire, 400mm, Eyelet On Each End, Red

1шт.

4

86611285

ELECTRICAL WIRE

WIRE Single Wire, 500mm, Eyelet On Each End, White

1шт.

5

87688537

SUPPORT ASSY.

1шт.

6

87679268

BRACKET

Relay Mount

1шт.

7

86619908

RELAY,12V, 150A

Cold Start

1шт.

8

87000220

HOSE CLAMP

1шт.

9

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.

10

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

1шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

13

353308

NUT,M6 x 1.0, Cl 8

2шт.

14

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

15

9706690

NUT,M8 x 1.25, Cl 8

1шт.

16

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

17

86566989

CABLE TIE,208mm L

CABLE STRAP

2шт.
