(90.102.02[2]) - PANEL LATCHES/SUPPORTS, R.H CONTINUED

Запчасти Case IH 9230 (90.102.02[2]) - PANEL LATCHES/SUPPORTS, R.H CONTINUED (90) - PLATFORM, CAB, BODYWORK AND DECALS

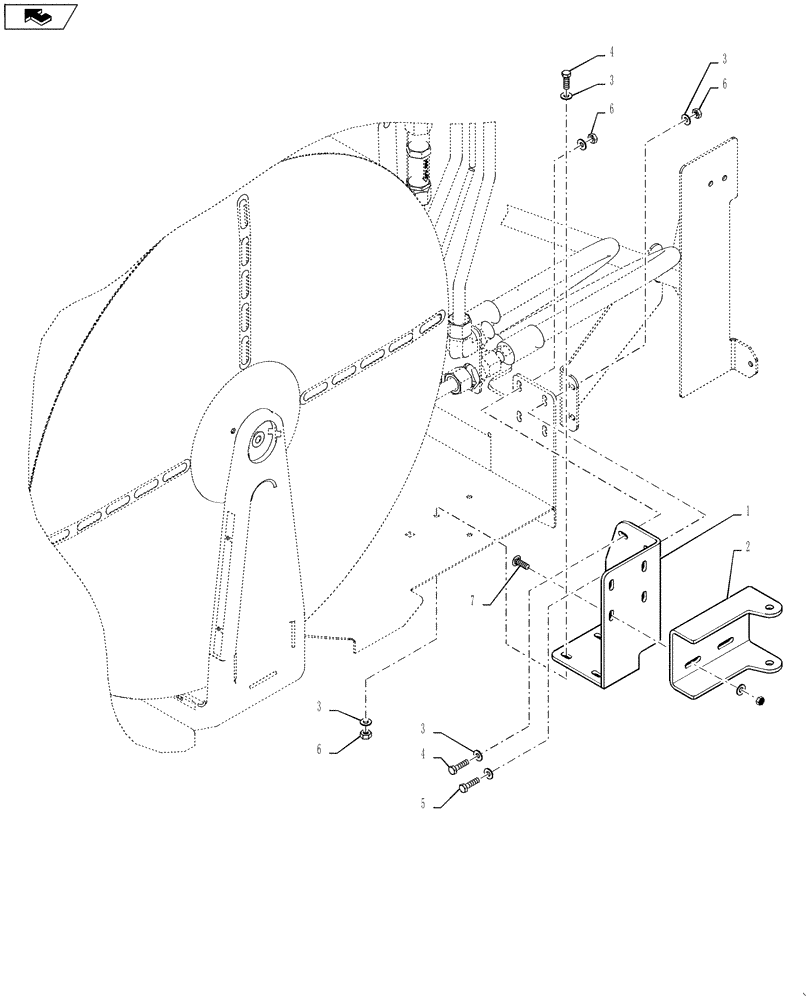

Схема запчастей Case IH 9230 - (90.102.02[2]) - PANEL LATCHES/SUPPORTS, R.H CONTINUED (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
4
5
7
2
4
6
3
3
3
6
home
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84133586

BRACKET

1шт.

2

87693648

BRACKET

1шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

18шт.

4

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

5шт.

5

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

2шт.

6

9706690

NUT,M8 x 1.25, Cl 8

11шт.

7

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

4шт.

Выбрано товаров: 7
