(90.105.06[2]) - ENGINE COVERS AND LADDER,MID,82/9230 T2/T4 CONTINUED

Запчасти Case IH 9230 (90.105.06[2]) - ENGINE COVERS AND LADDER,MID,82/9230 T2/T4 CONTINUED (90) - PLATFORM, CAB, BODYWORK AND DECALS

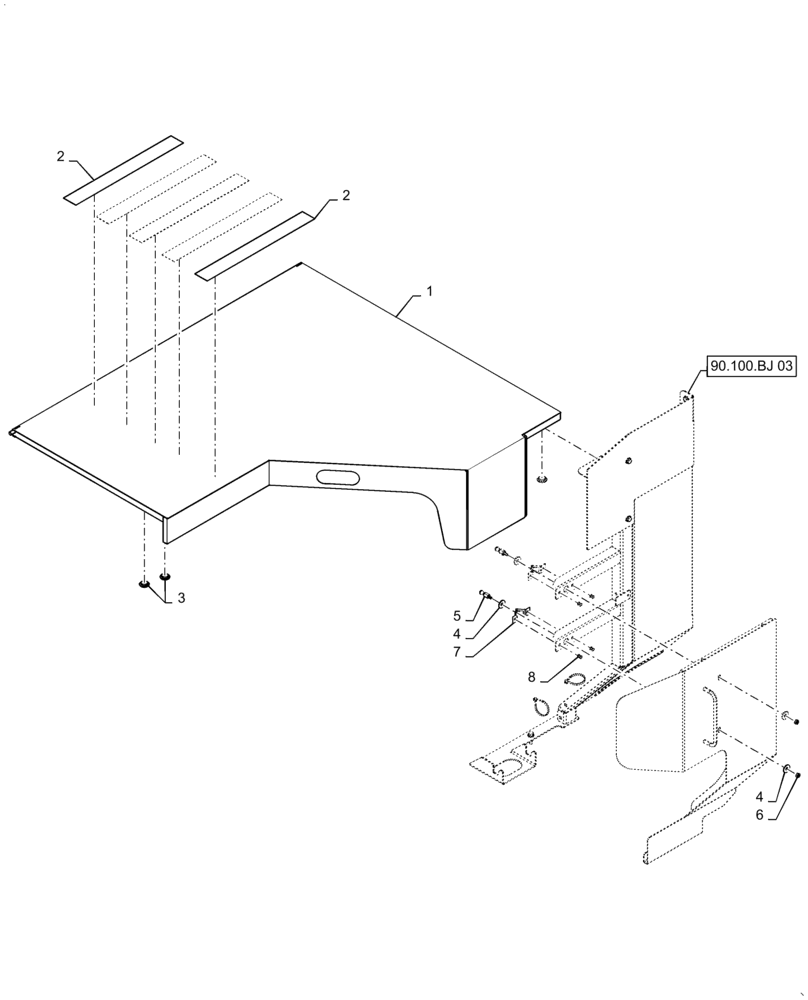

Схема запчастей Case IH 9230 - (90.105.06[2]) - ENGINE COVERS AND LADDER,MID,82/9230 T2/T4 CONTINUED (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
4
1
90.100.bj 03
5
2
2
4
7
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87679365

COVER ASSY

Engine Deck

1шт.

2

401502

ANTI-SKID STRIP

5 Used, 450mm OAL Each

1шт.

3

158188

PLUG,19mm Hole, 28.6mm OD

3шт.

4

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

5

86998687

STUD

Ball

2шт.

6

86508813

NUT,M5, Cl 8

2шт.

7

86998688

LATCH

Skirt Spring

2шт.

8

86984400

RIVET,Pop, 1/8" x .400", Stainless

4шт.
