(10.114.02) - FUEL SYSTEM, PUMP AND FILTER

Запчасти Case IH 9230 (10.114.02) - FUEL SYSTEM, PUMP AND FILTER (10) - ENGINE

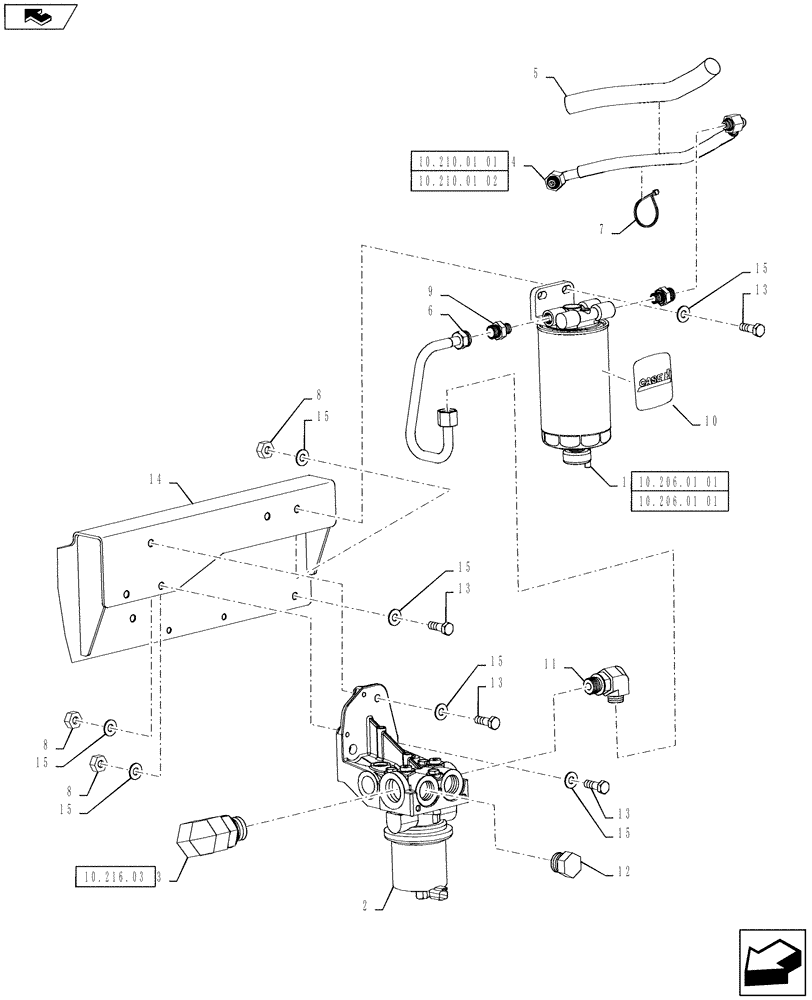

Схема запчастей Case IH 9230 - (10.114.02) - FUEL SYSTEM, PUMP AND FILTER (10) - ENGINE
2
5
13
7
13
15
8
14
10.206.01 01
13
10.206.01 01
4
15
10.210.01 01
10
6
1
15
15
13
11
10.210.01 02
3
15
10.216.03
8
8
home
15
12
15
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

0C

ORDER COMPONENTS

Filter, Fuel; See Page 10.216.01(02)

1шт.

2

87676818

FUEL PUMP,12V, 4.5A

1шт.

3

201-327

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 1-1/16" - 12 Male ORB

1шт.

4

87728315

HOSE

Fuel

1шт.

5

87743277

CONDUIT

1шт.

6

87728316

FUEL TUBE,.5" OD

Fuel

1шт.

7

86566989

CABLE TIE,208mm L

1шт.

8

100016

NUT,M10 x 1.5, Cl 8

5шт.

9

84431916

FITTING

2шт.

10

87679098

DECAL,37mm x 70mm

Case IH, Red i, No Underline

1шт.

11

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

1шт.

12

86512512

PLUG,7/8" - 14 ORB

2шт.

13

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

14

87734863

PLATE ASSY.

1шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.
