(35.300.BC[04]) - HYDRAULIC SYSTEM, ENGINE, TUBE

Запчасти Case IH 9230 (35.300.BC[04]) - HYDRAULIC SYSTEM, ENGINE, TUBE (35) - HYDRAULIC SYSTEMS

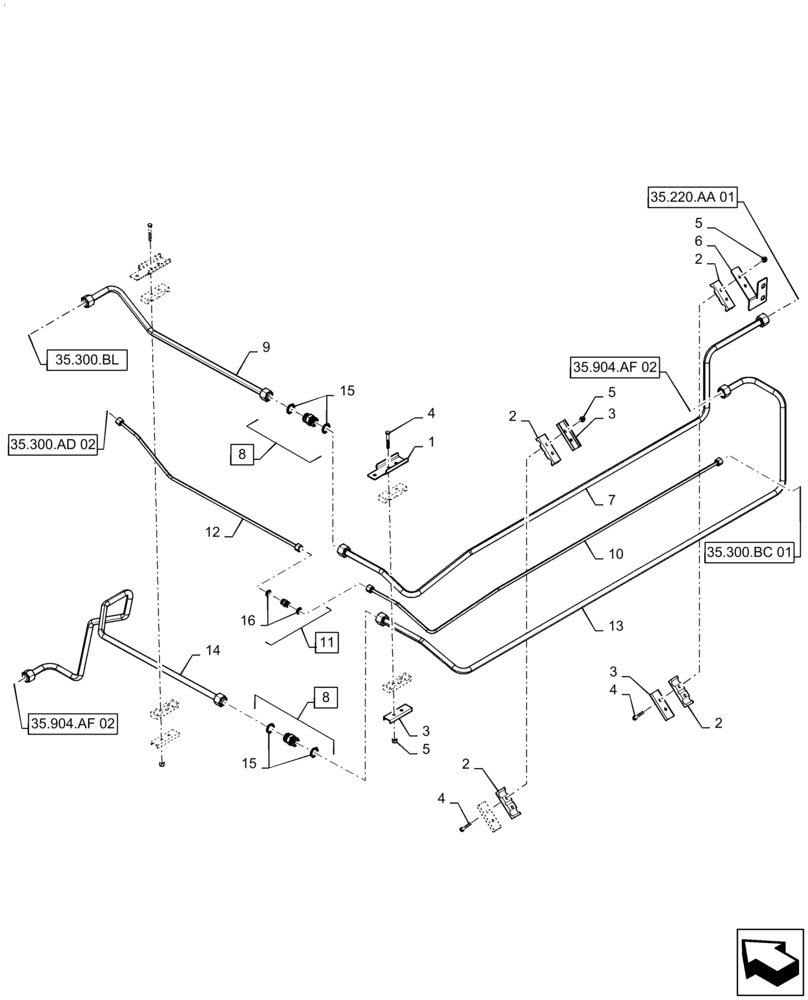

Схема запчастей Case IH 9230 - (35.300.BC[04]) - HYDRAULIC SYSTEM, ENGINE, TUBE (35) - HYDRAULIC SYSTEMS
4
13
5
9
5
15
35.904.af 02
35.300.ad 02
14
35.300.bc 01
4
2
15
4
2
3
11
35.904.af 02
2
2
7
5
6
10
12
35.300.bl
1
35.220.aa 01
3
16
3
8
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84517700

BRACKET

Tube Clamp

2шт.

2

86998883

CLAMP

Hydraulic Tube, 3 Hole

4шт.

3

87000242

CHANNEL

Clamp Backup

5шт.

4

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

8шт.

5

86629542

NUT,M8 x 1.25, Cl 8.8

8шт.

6

87000942

BRACKET

Tube Clamp

1шт.

7

84354986

HYD TUBE

Cleaning Fan Pressure

1шт.

8

84100407

UNION,1-3/16"-12 ORFS

Incl 15

2шт.

9

84354991

HYD TUBE

Cleaning Fan Valve Pressure

1шт.

10

84354993

HYD TUBE

Cleaning Fan Drain

1шт.

11

84431546

UNION,11/16"-16 ORFS

Incl 16

1шт.

12

84354996

HYD TUBE

Cleaning Fan Drain

1шт.

13

84354979

HYD TUBE

Spreader Return

1шт.

14

84568643

HYD TUBE

Rotary Air Screen Motor Pressure

1шт.

15

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

16

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.
