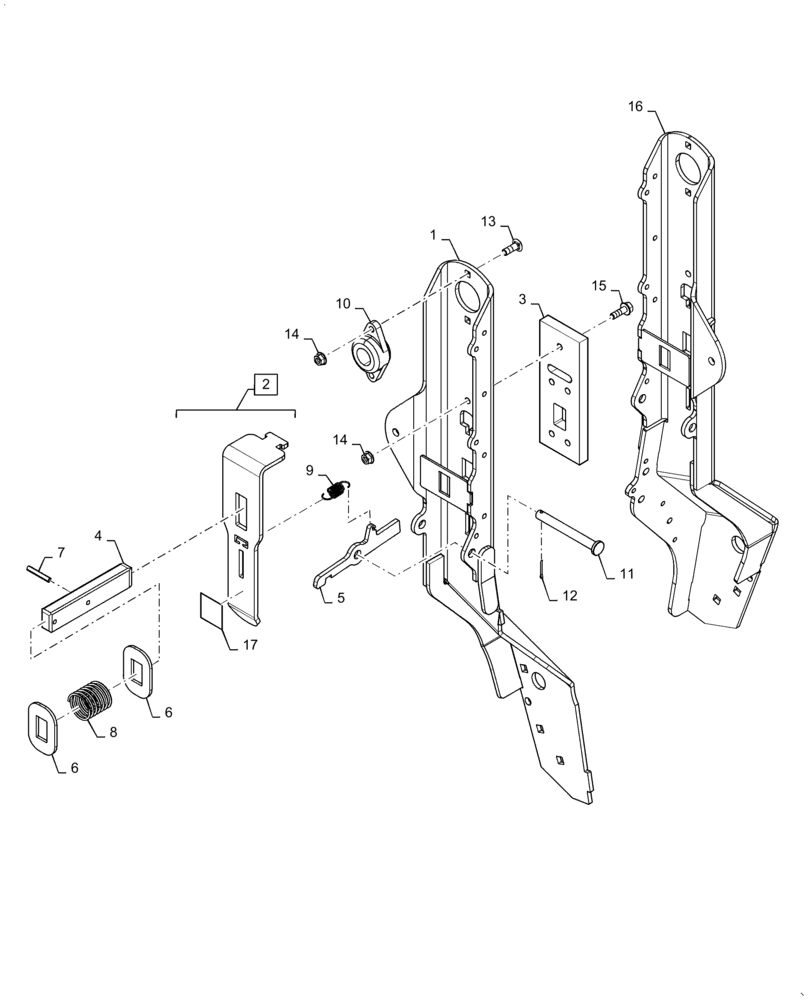

Запчасти Case IH 9230 (73.335.AB[03]) - VAR - 425488 - LATCH, CHAFF SPREADER, LH, RH, BSN YDG222003 (73) - RESIDUE HANDLING

1

47411648

ARM

Spreader Latch, LH

1шт.

2

84495336

HANDLE

Spreader Lock, Incl 17

1шт.

3

87283070

SLIDING PAD

200mm OAL x 16mm Thk

1шт.

4

87283063

LOCKING BAR

Spreader

1шт.

5

87283062

TRIGGER

Spreader Lock

1шт.

6

87283069

LOCK WASHER

Block Retainer

2шт.

7

86625115

PIN,M6 x 40mm OAL

2шт.

8

87283233

SPRING

Compression, 1.383" ID x 1.609" OD x 2" Free Length, 6.5 Coils

1шт.

9

84420748

SPRING,Extension, 15.9mm OD x 38.1mm L

Extension, Latch Return, 15.9mm OD x 38.1mm OAL

1шт.

10

9839087

NYLON BEARING,25.5mm ID x 50mm OD x 30mm Thk

1шт.

11

412046

CLEVIS PIN,12mm OD x 110mm L

1шт.

12

87016659

COTTER PIN,M2.5 x 20mm OAL

1шт.

13

87682384

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 10.9

2шт.

14

87681210

FLANGE NUT,M8 x 1.25, Cl 10

5шт.

15

87698833

BOLT,M8 x 33.1mm, Cl 10.9

3шт.

16

47411667

ARM

Spreader Latch, RH

1шт.

17

84535465

DECAL

Locking/Adjusting Procedure

1шт.
