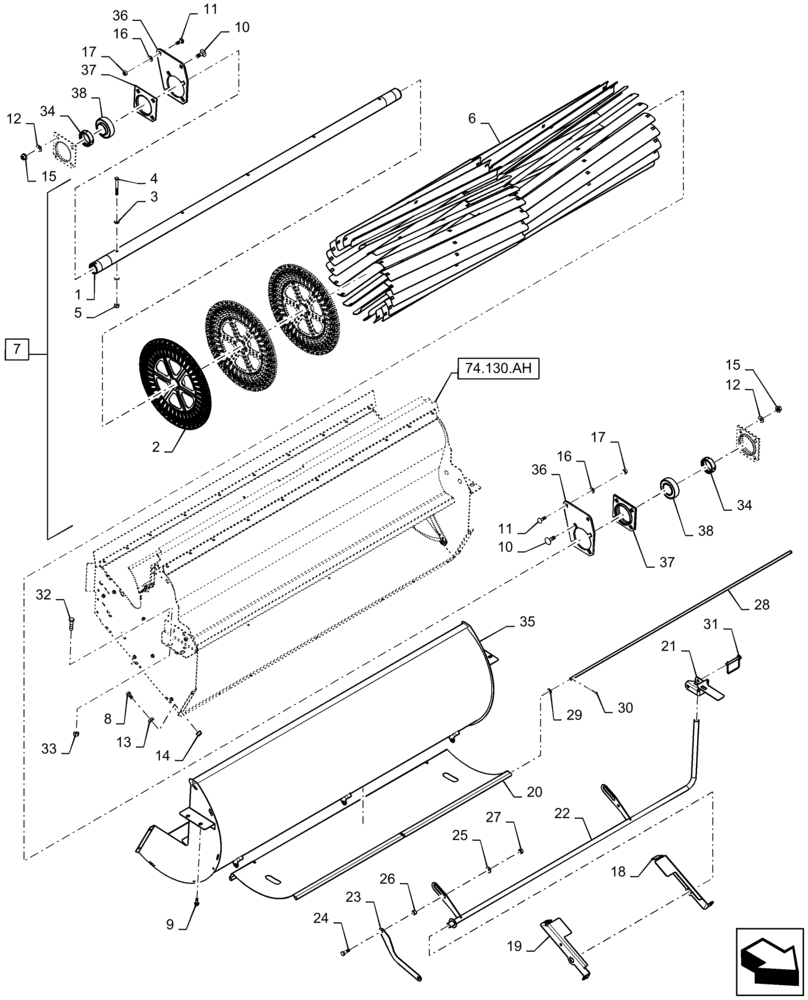

1
87495205
SHAFT ASSY.
Narrow, - VAR - 425258
1шт.
1
87589411
SHAFT
Wide, - VAR - 722030
1шт.
2
86980769
DISC
Cleaning Fan
5шт.
3
86625263
WASHER,9mm ID x 20mm OD x 1.6mm Thk
10шт.
4
331175
BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8
5шт.
5
86629542
NUT,M8 x 1.25, Cl 8.8
5шт.
6
86997034
FAN BLADE
Cleaning Fan
40шт.
7
87487017
FAN
Narrow, Incl 1 - 6, - VAR - 425258
1шт.
7
87107366
FAN
Wide, Incl 1 - 6, - VAR - 722030
1шт.
8
9804258
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
11шт.
9
87698833
BOLT,M8 x 33.1mm, Cl 10.9
4шт.
10
328430
CARRIAGE BOLT,M12 x 1.75 x 35mm, Cl 8.8
8шт.
11
86512446
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8
4шт.
12
140046
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
12шт.
13
322358
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
11шт.
14
9804277
FLANGE NUT,Hex, M8 x 1.25, Cl 8
15шт.
15
9804279
FLANGE NUT,Hex, M12, Cl 8
8шт.
16
140045
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
4шт.
17
100016
NUT,M10 x 1.5, Cl 8
4шт.
18
87477999
BRACKET
LH
1шт.
19
87478001
BRACKET
RH
1шт.
20
87478003
DOOR
Fan Top
1шт.
21
87663341
LATCH
Housing, Side
1шт.
22
87663339
HANDLE
Door
1шт.
23
87663335
ARM
Latch
2шт.
24
43140
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8
2шт.
25
80702
WASHER,0.44" ID x 1" OD x 0.08" Thk
4шт.
26
626698
SPACER
10.3mm ID x 15.9mm OD x 9.5mm OAL
2шт.
27
100037
LOCK NUT,M10 x 1.5, Cl 8
2шт.
28
87635283
ROD
Hinge, 9.525mm OD x 1246mm OAL
2шт.
29
86624176
WASHER,11mm ID x 20mm OD x 2mm Thk
6шт.
30
130003
COTTER PIN,3mm OD x 30mm OAL
4шт.
31
647695
PIN,7.94mm OD
Quick Snap
1шт.
32
9628065
SCREW,Hex, M12 x 1.75 x 45mm, Cl 8.8
4шт.
33
100038
NUT,M12 x 1.75, Cl 8
4шт.
34
86999734
COLLAR,44.48mm ID x 63.5mm OD x 18.3mm W
44.45mm ID x 63.5mm OD x 18.26mm Thk
2шт.
35
87635286
COVER ASSY
Fan
1шт.
36
86997109
PLATE
Fan Bearing Support
2шт.
37
716840
FLANGE
85mm ID x 11.1mm Thk
4шт.
38
668719R92
BEARING ASSY,1.7505" ID x 3.346" OD x 1.1875" Thk
2шт.
