(88.100.66[05]) - DIA KIT, ROTOR, CAGE, FILLER

Запчасти Case IH 9230 (88.100.66[05]) - DIA KIT, ROTOR, CAGE, FILLER (88) - ACCESSORIES

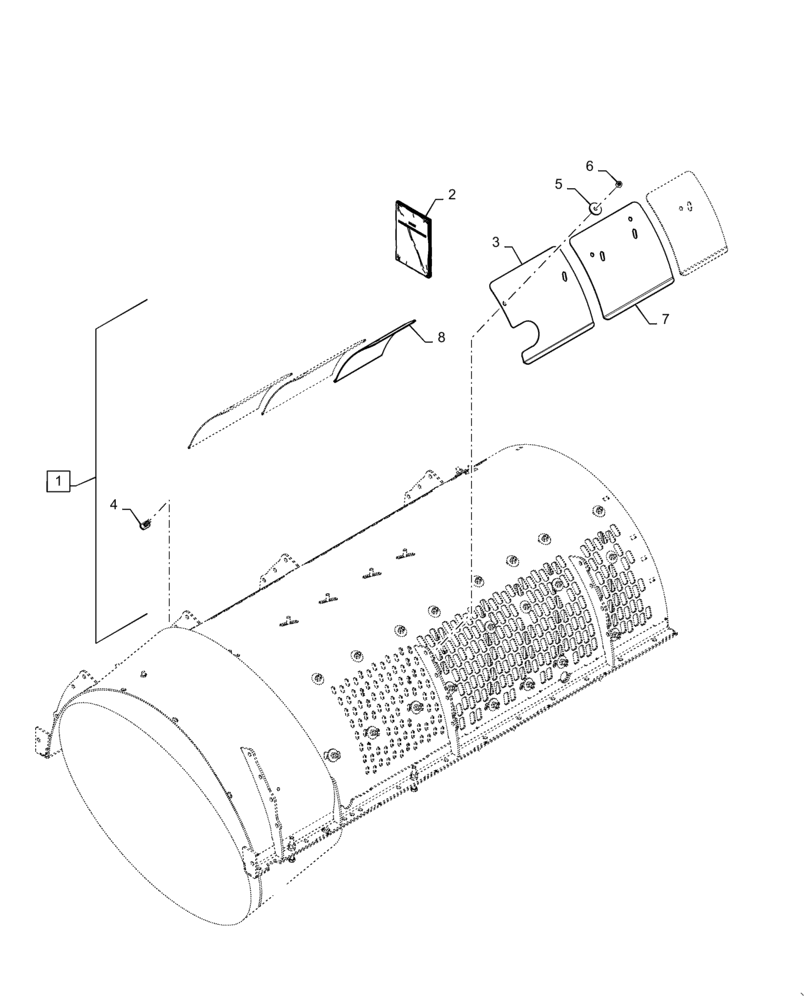

Схема запчастей Case IH 9230 - (88.100.66[05]) - DIA KIT, ROTOR, CAGE, FILLER (88) - ACCESSORIES
8
7
3
5
1
4
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84537148

SERVICE KIT

Rotor Cage Filler Plate, Incl 2 - 8

1шт.

2

84537250

INSTRUCTION

Installation Instructions

1шт.

3

84536296

COVER

306.3mm OAL x 288mm W

1шт.

4

87106338

BOLT

M10 x 30, Cl 8.8

5шт.

5

140219

WASHER,11mm ID x 40mm OD x 4mm Thk

40mm OD x 11mm ID x 4mm W

5шт.

6

100016

NUT,M10 x 1.5, Cl 8

5шт.

7

84536293

COVER

306mm OAL x 288.2mm W

3шт.

8

84536294

COVER

288.2mm OAL x 204.6mm W

2шт.
