(88.100.80[15]) - DIA KIT, ELEVATOR, GRAIN TANK, REDUCTION

Запчасти Case IH 9230 (88.100.80[15]) - DIA KIT, ELEVATOR, GRAIN TANK, REDUCTION (88) - ACCESSORIES

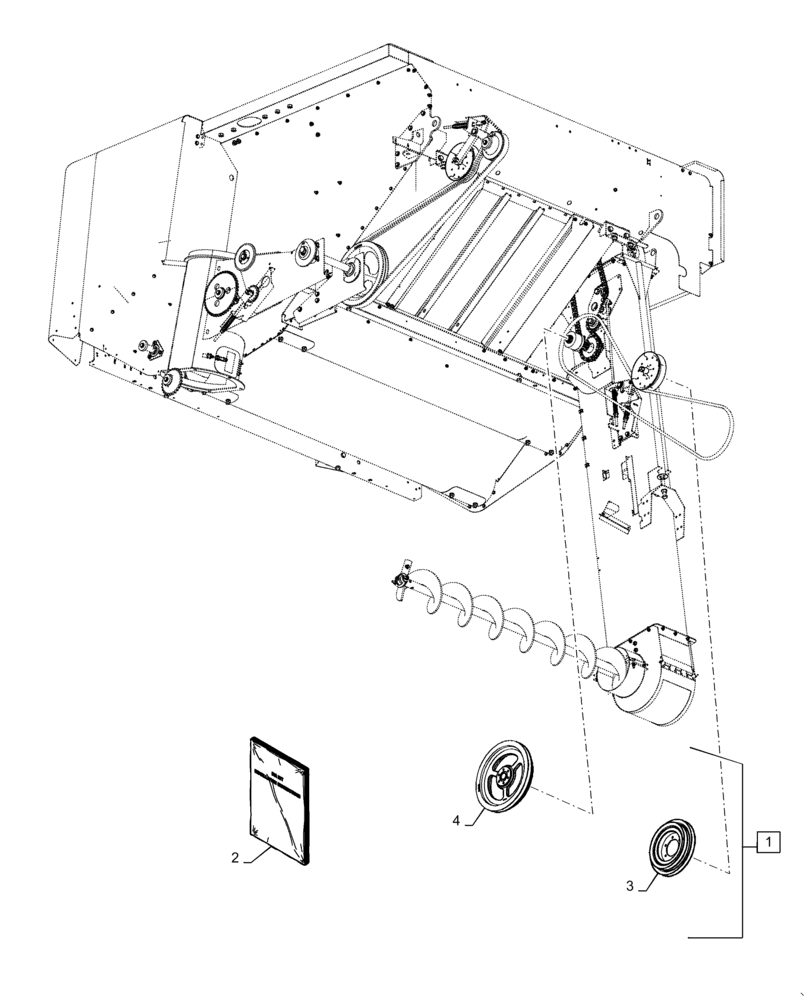

Схема запчастей Case IH 9230 - (88.100.80[15]) - DIA KIT, ELEVATOR, GRAIN TANK, REDUCTION (88) - ACCESSORIES
3
4
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87753906

DIA KIT, HARVESTER

Elevator Speed Reduction, Incl 2 - 4

1шт.

2

87472376

INSTRUCTION

Instructions, Elevator Speed Reduction

1шт.

3

86999007

PULLEY,335mm OD

Driven, 344.8mm OD x 100mm ID

1шт.

4

86976480

PULLEY

Sheave, 422mm OD x 39.012mm ID

1шт.
