(14.100.AP[04]) - VAR - 425465, 425361, 425362, 425464 - VARIATOR, ROTOR, CLUTCH DISC

Запчасти Case IH 9230 (14.100.AP[04]) - VAR - 425465, 425361, 425362, 425464 - VARIATOR, ROTOR, CLUTCH DISC (14) - MAIN GEARBOX & DRIVE

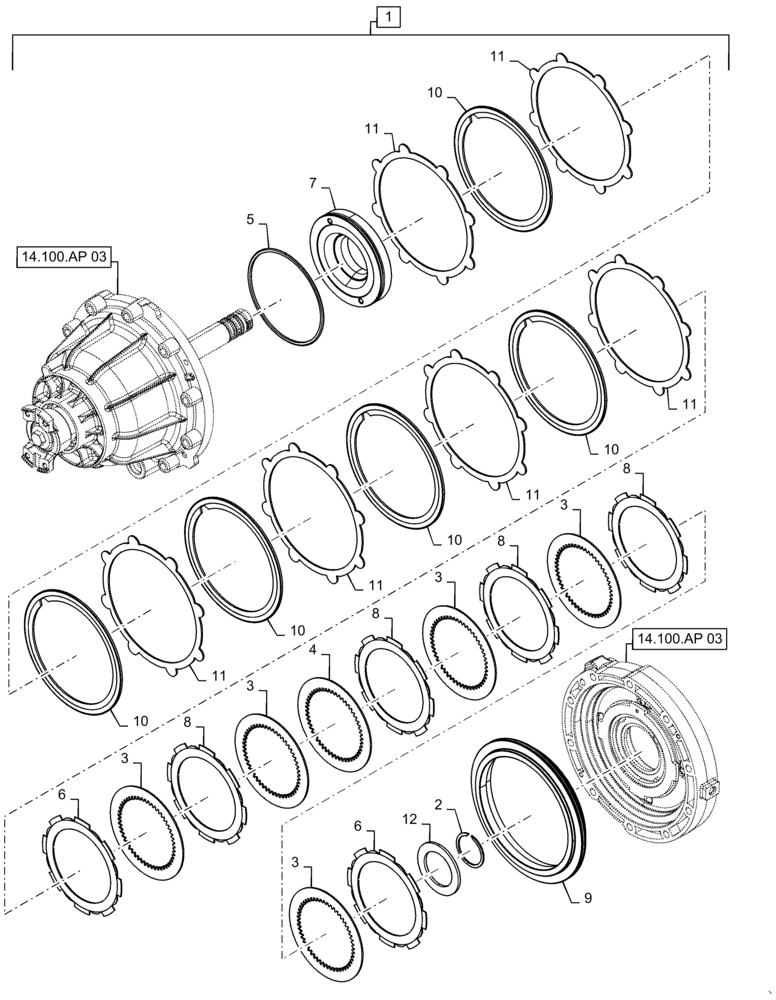

Схема запчастей Case IH 9230 - (14.100.AP[04]) - VAR - 425465, 425361, 425362, 425464 - VARIATOR, ROTOR, CLUTCH DISC (14) - MAIN GEARBOX & DRIVE
11
10
6
3
11
14.100.ap 03
8
3
8
11
9
10
8
11
10
3
14.100.ap 03
11
6
7
10
3
4
11
1
10
8
5
2
3
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47408258

GEARBOX

Rotor Variator, Incl 2 - 12

1шт.

2

428163A1

RING, SNAP

Retaining, 70mm ID x 82mm OD

1шт.

3

S2080S00F

CLUTCH DISC,2.4mm Thk

1шт.

4

S2090S00F

CLUTCH DISC,2.1mm Thk

1шт.

5

87431391

RING

Seal, 173mm ID x 181mm OD

1шт.

6

375528A1

CLUTCH DISC

8 Tab, 141.7mm ID x 1.5mm Thk, 7" Clutch Face

2шт.

7

352833A1

PISTON

74mm ID x 175mm OD

1шт.

8

375529A1

CLUTCH DISC

8 Tab, 141.7mm ID x 2.2mm Thk, 7" Clutch Face

4шт.

9

87281427

PISTON

Reverse, Reducer, 224mm ID to 215mm ID x 273mm OD x 30mm Thk

1шт.

10

87281430

CLUTCH DRIVING PLATE

Reverse, 197mm ID x 237mm OD

5шт.

11

87281431

CLUTCH PLATE,216mm ID x 241mm OD x 2.4mm Thk

Reverse

6шт.

12

352827A1

PLATE

Spring, Retainer, 73mm ID x 108mm OD x 5mm Thk

1шт.
