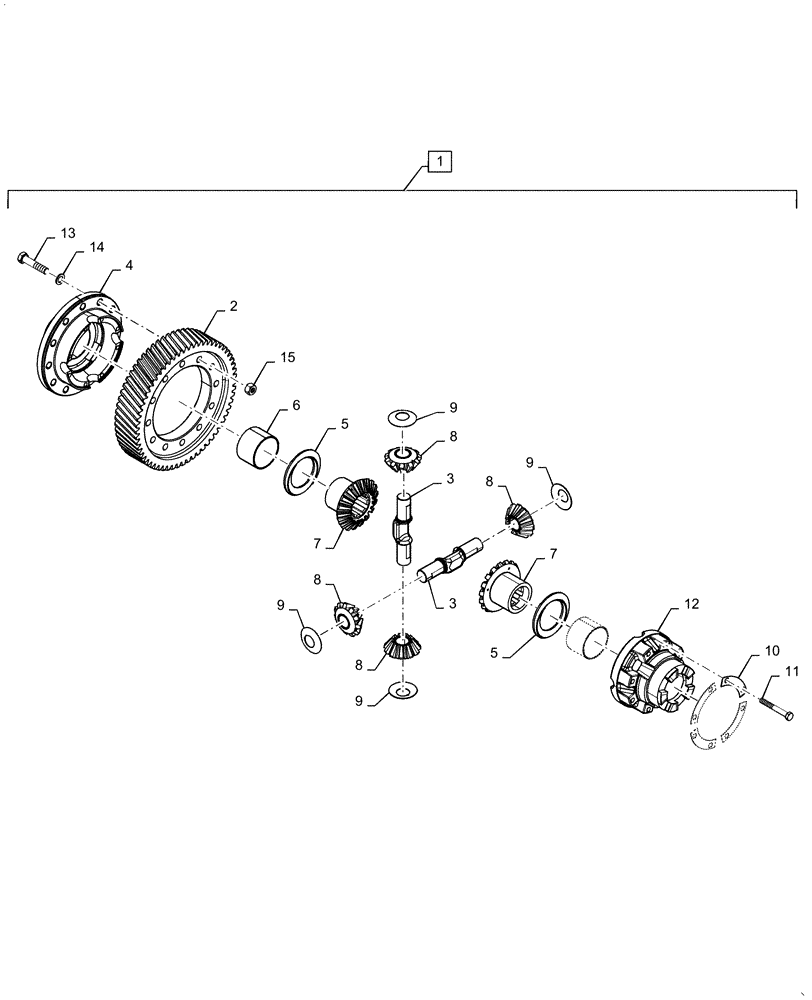

Запчасти Case IH 9230 (21.182.AF[03]) - VAR - 722776, 425215, 425399, 425529, 425528, 425402, 425403, 425431, 425273 - DIFFERENTIAL ASSY, LOCKING, 20/ 61 (21) - TRANSMISSION

1

84071415

DIFFERENTIAL

Locking, 20/61 Ratio, Incl 2 - 15

1шт.

2

NSS

NOT SOLD SEPARAT

Ring Gear, 61T, Incl in 1

1шт.

3

9514041

SHAFT

Center, 169mm L

2шт.

4

NSS

NOT SOLD SEPARAT

Differential Housing, Incl in 1

1шт.

5

210013

THRUST WASHER,70.1mm ID x 104mm OD x 4mm Thk

2шт.

6

9514039

BUSHING,70 mm ID

2шт.

7

9514042

PLANETARY GEAR

Sun, 18T

2шт.

8

9850394

GEAR

Pinion, 11T

4шт.

9

210014

WASHER

Skid Plate, 28mm ID x 59mm OD x 1mm Thk

4шт.

10

331649

LOCKING PLATE

Housing

4шт.

11

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

8шт.

12

NSS

NOT SOLD SEPARAT

Differential Housing, Incl in 1

1шт.

13

84559732

BOLT,M14 x 65mm, Cl 10.9

12шт.

14

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

12шт.

15

84580738

NUT,M14, PHC

12шт.
