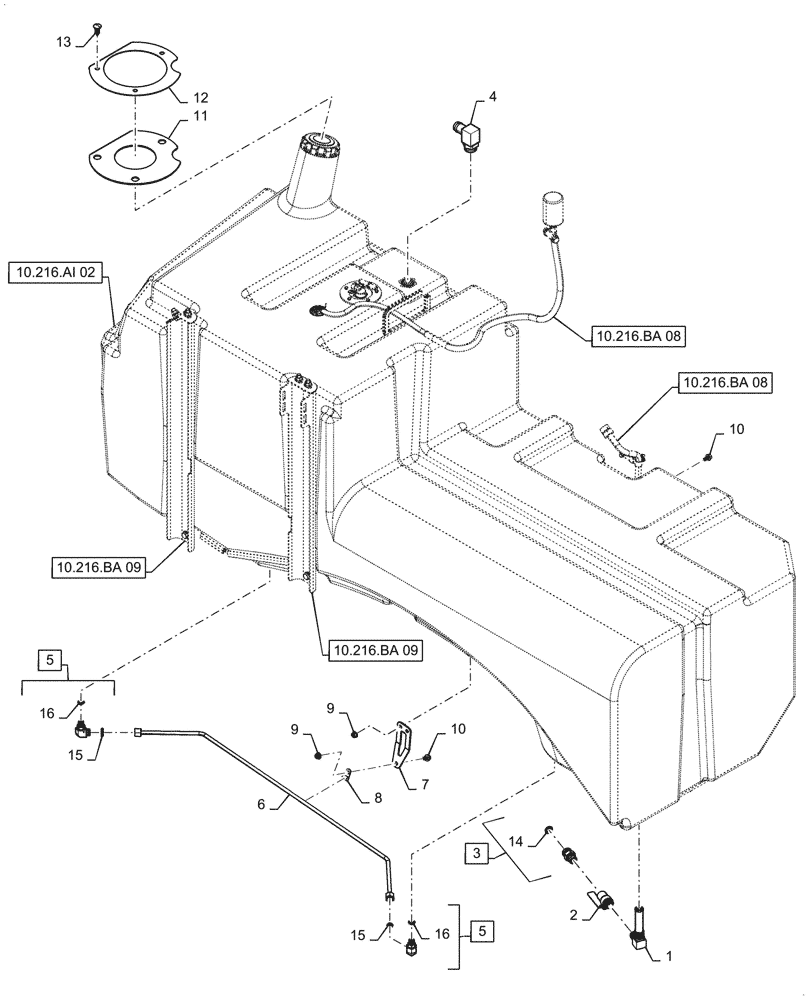

Запчасти Case IH 9240 (10.216.BA[10]) - FUEL TANK, FUEL LINE (10) - ENGINE

1

47393252

FILTER STRAINER

Fuel Suction

1шт.

2

435446A1

SHUT-OFF VALVE,1/2"-14 NPTF, Ball Type

1шт.

3

84319917

HYD CONNECTOR,1/2"-14 NPTF x 1"-14 ORFS

Incl 14

1шт.

4

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

1шт.

5

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

Incl 15, 16

2шт.

6

47539359

TUBE

Fuel, Sump to Sump

1шт.

7

47604840

SUPPORT

Fuel Tube

1шт.

8

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

9

86507066

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

10

87681207

BOLT,M8 x 24.1mm, Cl 10.9

3шт.

11

47583625

SEAL

Rubber, Fuel Neck

1шт.

12

47597570

RETAINER

Fuel Neck Seal

1шт.

13

47551475

FASTENER

Pine Tree

3шт.

14

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

15

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

16

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
