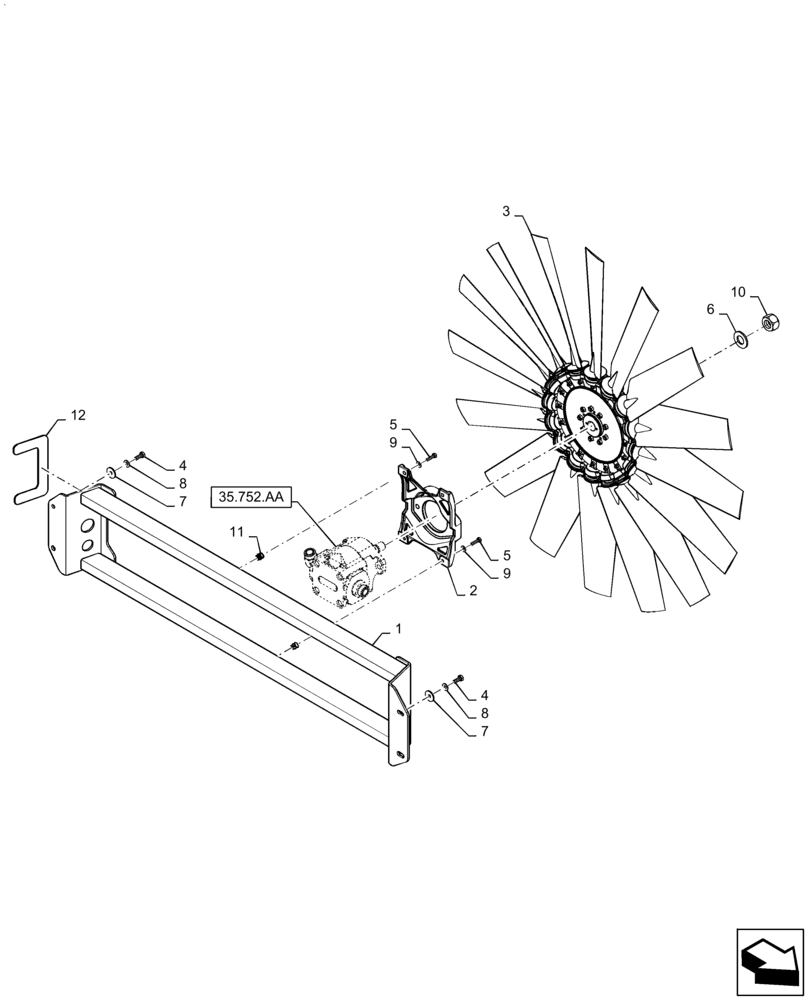

Запчасти Case IH 9240 (10.414.AC[05]) - DRIVE, FAN, ENGINE (10) - ENGINE

1

47612368

SUPPORT

Fan Drive

1шт.

2

47614858

FAN HOUSING

Support

1шт.

3

47376464

FAN

Engine, 16 Blade

1шт.

4

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

5

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

6

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

1шт.

7

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

4шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

10

84139328

NUT,1"-14, Gr 8

1шт.

11

86610201

INSERT,M8

4шт.

12

47626379

GASKET

Air Duct

1шт.
