(35.106.AO[04]) - HYDRAULIC LINE, CLUTCH, FEEDER, PTO

Запчасти Case IH 9240 (35.106.AO[04]) - HYDRAULIC LINE, CLUTCH, FEEDER, PTO (35) - HYDRAULIC SYSTEMS

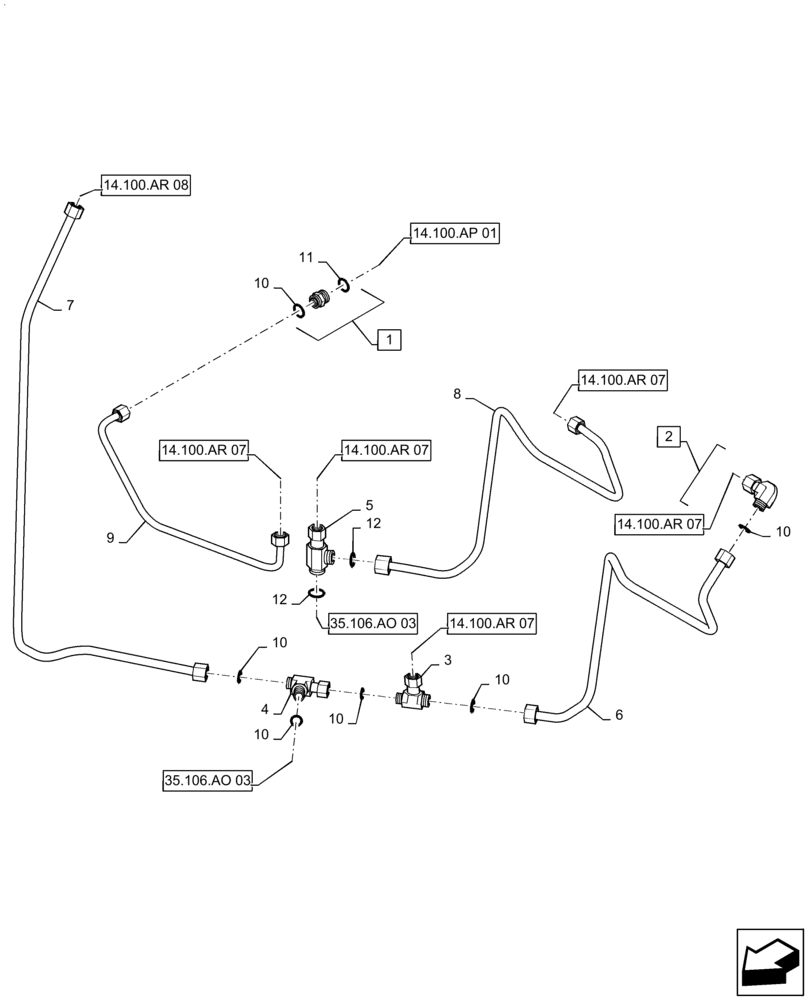

Схема запчастей Case IH 9240 - (35.106.AO[04]) - HYDRAULIC LINE, CLUTCH, FEEDER, PTO (35) - HYDRAULIC SYSTEMS
10
2
12
11
1
10
14.100.ar 07
10
9
14.100.ar 07
5
14.100.ar 07
12
35.106.ao 03
6
8
14.100.ap 01
10
3
4
35.106.ao 03
7
14.100.ar 07
10
14.100.ar 07
10
14.100.ar 08
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86579671

HYD CONNECTOR,11/16" - 16 ORFS x M14 x 1.5 ORB

Incl 10 - 11

1шт.

2

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

Incl 10

1шт.

3

86591334

TEE,11/16"-16 ORFS x 11/16"-16 Fem

1шт.

4

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

1шт.

5

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

1шт.

6

86995872

HYD TUBE,0.375" OD

Rotor Clutch Regulated Supply

1шт.

7

87657699

HYD TUBE,0.375" OD

Clutch Pressure Supply

1шт.

8

86995885

HYD TUBE,0.50" OD

Feeder Clutch Lube Supply

1шт.

9

86995994

HYD TUBE,0.375" OD

Rotor Clutch Pressure

1шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

11

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

12

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.
