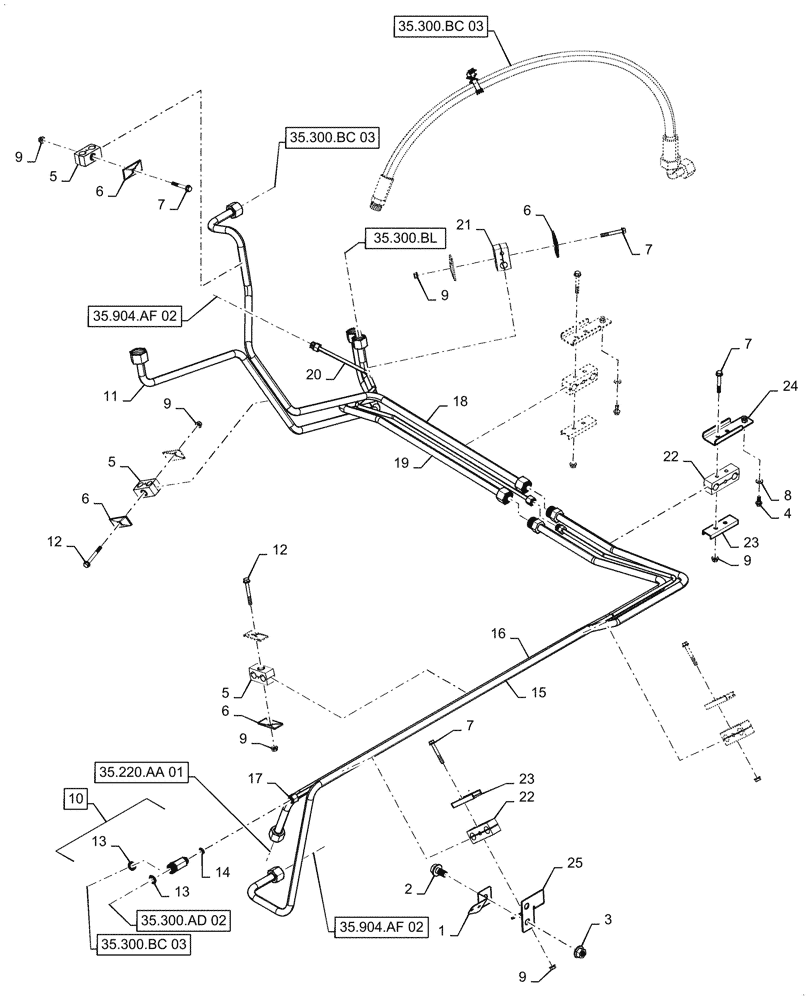

Запчасти Case IH 9240 (35.300.BC[04]) - HYDRAULIC SYSTEM, ENGINE, HYD. TUBE (35) - HYDRAULIC SYSTEMS

1

47594463

BRACKET

Hydraulic Tube

1шт.

2

87698766

FLANGE BOLT,M16 x 45.4mm, Cl 10.9

2шт.

3

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

4

86625200

SELF-TAP SCREW,Hex Flng, M8 x 1.25 x 20mm

2шт.

5

87000140

CLAMP,Tube, 19.05mm

3шт.

6

87000230

PLATE

Clamp Cover

7шт.

7

87670761

FLANGE BOLT,M8 x 68.1mm, Cl 10.9

10шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

9

86507066

FLANGE NUT,M8 x 1.25, Cl 10

12шт.

10

87109744

FITTING

Reducer Tee, Incl 13, 14

1шт.

11

47696839

TUBE

Cleaning Fan Valve Return

1шт.

12

87656138

BOLT,M8 x 78.1mm, Cl 10.9

2шт.

13

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

14

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

15

48035823

HYD TUBE

Spreader Return

1шт.

16

48035839

HYD TUBE

Cleaning Fan Supply

1шт.

17

48035854

HYD TUBE

Cleaning Fan Drain

1шт.

18

47696809

TUBE

SAS Flow Control Supply

1шт.

19

47517586

TUBE

Cleaning Fan Valve Supply

1шт.

20

47693251

TUBE

Cleaning Fan Drain

1шт.

21

87000154

CLAMP

Hydraulic Tube

1шт.

22

86998883

CLAMP

Hydraulic Tube

4шт.

23

87000242

CHANNEL

Clamp Back Up

5шт.

24

47558088

BRACKET

Tube Clamp

2шт.

25

87000942

BRACKET

Clamp

1шт.
