(88.100.80[01]) - DIA KIT, ELEVATOR, GRAIN TANK, REDUCTION

Запчасти Case IH 9240 (88.100.80[01]) - DIA KIT, ELEVATOR, GRAIN TANK, REDUCTION (88) - ACCESSORIES

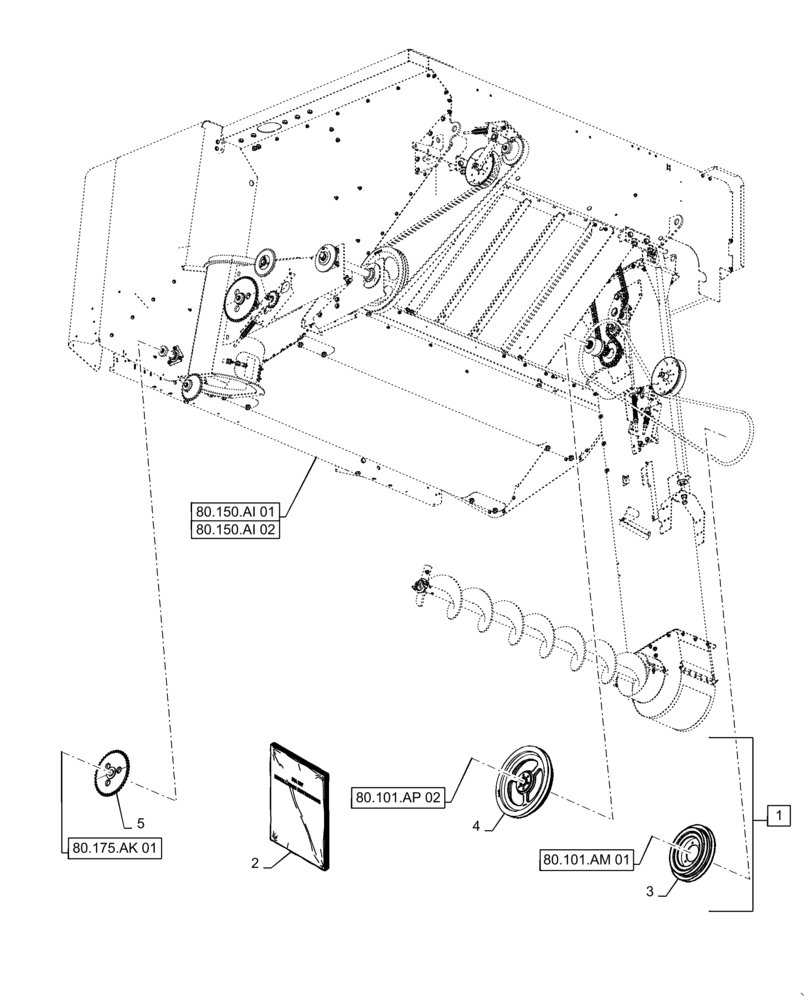

Схема запчастей Case IH 9240 - (88.100.80[01]) - DIA KIT, ELEVATOR, GRAIN TANK, REDUCTION (88) - ACCESSORIES
80.175.ak 01
80.150.ai 02
1
80.150.ai 01
3
80.101.am 01
5
80.101.ap 02
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84084386

DIA KIT, HARVESTER

Elevator And Grain Tank Reduction, Incl 2 - 5

1шт.

2

87281782

INSTRUCTION

Installation

1шт.

3

86999007

PULLEY,335mm OD

Sheave

1шт.

4

86976480

PULLEY

Driven, 422mm OD x 39.012mm ID

1шт.

5

84069677

SPROCKET,43T

272.9mm OD x 74mm ID

1шт.
