(88.100.10[02]) - DIA KIT, AIR INTAKE

Запчасти Case IH 9240 (88.100.10[02]) - DIA KIT, AIR INTAKE (88) - ACCESSORIES

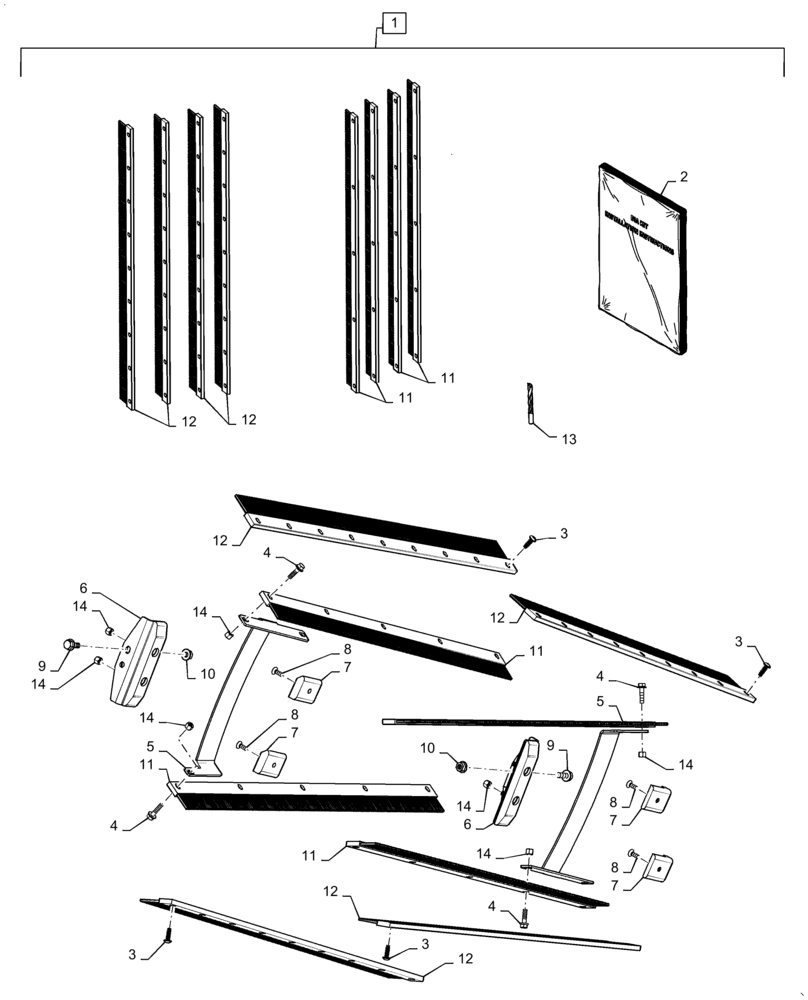

Схема запчастей Case IH 9240 - (88.100.10[02]) - DIA KIT, AIR INTAKE (88) - ACCESSORIES
3
14
14
10
7
12
13
7
10
11
11
3
12
14
12
4
14
5
7
12
2
8
11
9
12
9
11
8
3
4
14
4
6
14
14
3
11
12
1
4
7
8
5
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47835567

KIT

DIA, Sucrose Brushes, Incl 2 - 14

1шт.

2

47836609

INSTRUCTION

Sucrose Brushes, Installation

1шт.

3

47835613

SCREW

Torx, .75"

36шт.

4

87670758

FLANGE BOLT,M6 x 31.6mm, Cl 10.9

20шт.

5

47835983

PLATE

Airscreen Blockoff, Wearing

2шт.

6

47837415

KIT

Wear Block, Airscreen

2шт.

7

47773990

BRACKET

Abrasive Wear

4шт.

8

14441327

HEX SOC SCREW,Flat Csk Hd, M6 x 16mm, Cl 8.8

4шт.

9

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

10

86507066

FLANGE NUT,M8 x 1.25, Cl 10

4шт.

11

47774553

BRUSH

Airscreen Cleaner, Blockoff

8шт.

12

47774554

BRUSH

Airscreen Cleaner, Nozzle

8шт.

13

84153086

BIT

7/32" Drill

1шт.

14

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

20шт.
