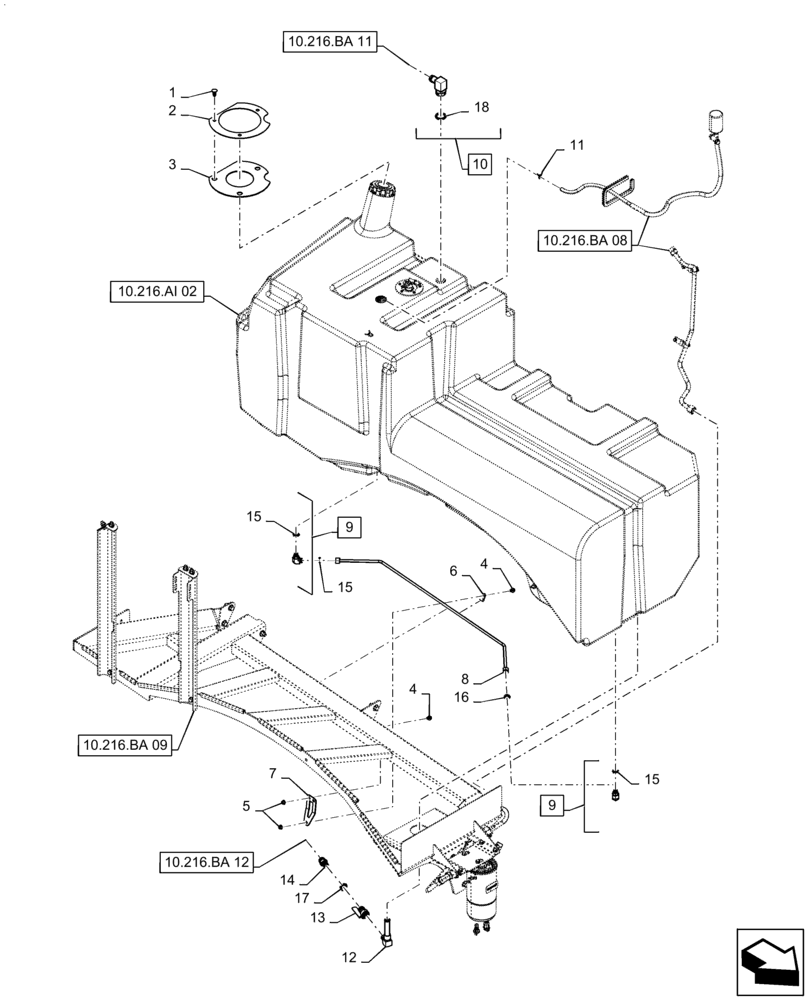

Запчасти Case IH 9240 (10.216.BA[10]) - FUEL TANK, FUEL LINE (10) - ENGINE

1

47551475

FASTENER

Push - In, Tree

3шт.

2

47597570

RETAINER

Fuel Neck Seal

1шт.

3

47583625

SEAL

Rubber, Fuel Neck, 115mm ID x 255mm OD x 0.5mm Thk

1шт.

4

87681207

BOLT,M8 x 24.1mm, Cl 10.9

3шт.

5

86507066

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

6

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

7

47604840

SUPPORT

Bracket, Fuel Line

1шт.

8

47539359

TUBE

Fuel, Sump to Sump

1шт.

9

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

Incl 15

2шт.

10

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

Incl 18

1шт.

11

86637701

HOSE CLAMP,12.45mm - 12.95mm

1шт.

12

47393252

FILTER STRAINER

Fuel Suction, 30 Mesh

1шт.

13

435446A1

SHUT-OFF VALVE,1/2"-14 NPTF, Ball Type

1шт.

14

84319917

HYD CONNECTOR,1/2"-14 NPTF x 1"-14 ORFS

1шт.

15

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

16

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

17

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

18

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
