(74.101.AL) - PULLEY DRIVE, SHAKER

Запчасти Case IH AF4077 (74.101.AL) - PULLEY DRIVE, SHAKER (74) - CLEANING

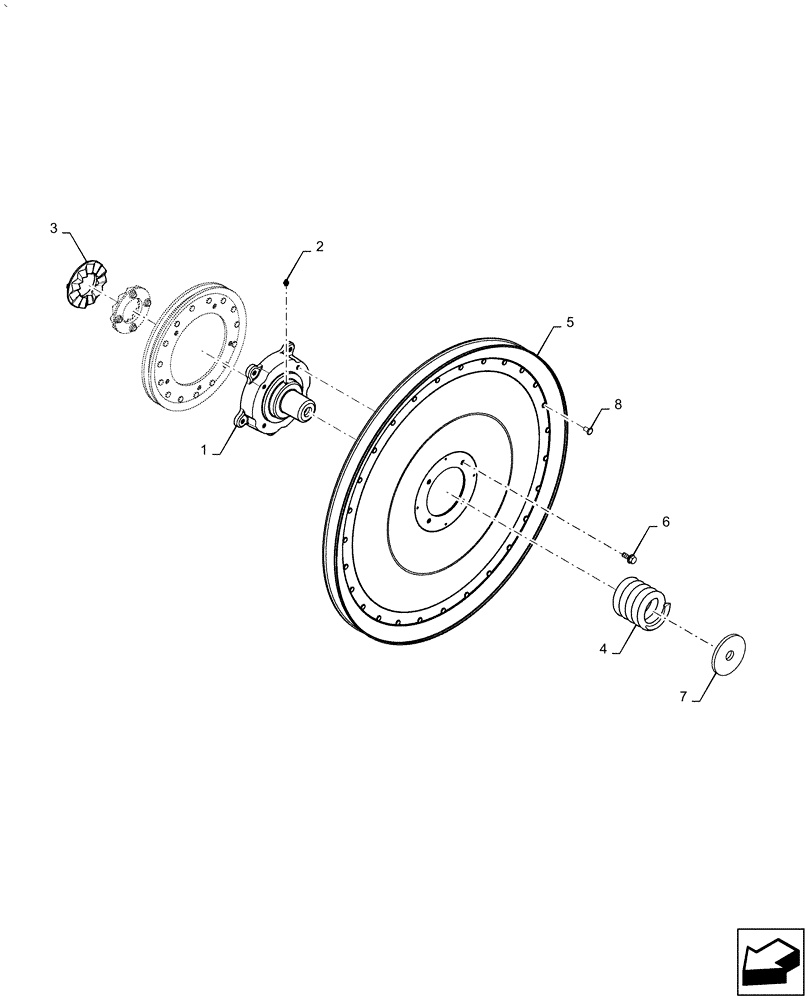

Схема запчастей Case IH AF4077 - (74.101.AL) - PULLEY DRIVE, SHAKER (74) - CLEANING
1
3
8
7
6
5
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47534738

Shaker Drive

HUB

1шт.

2

87588865

FITTING,M6 x 1 x 12mm L

Lube

1шт.

3

B12170

RATCHET,Clutch Slip, 94.49mm

Clutch, Slip

2шт.

4

19302K

SPRING

Shaker Shaft Drive-Painted

1шт.

5

87735279

PULLEY,616.52mm OD

Assy, Shaker Shaft Driven-Painted

1шт.

6

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

Flange

4шт.

7

167521H1

SPRING WASHER

1шт.

8

47-36

RIVET,FH, 3/16" x 3/8"

27шт.
