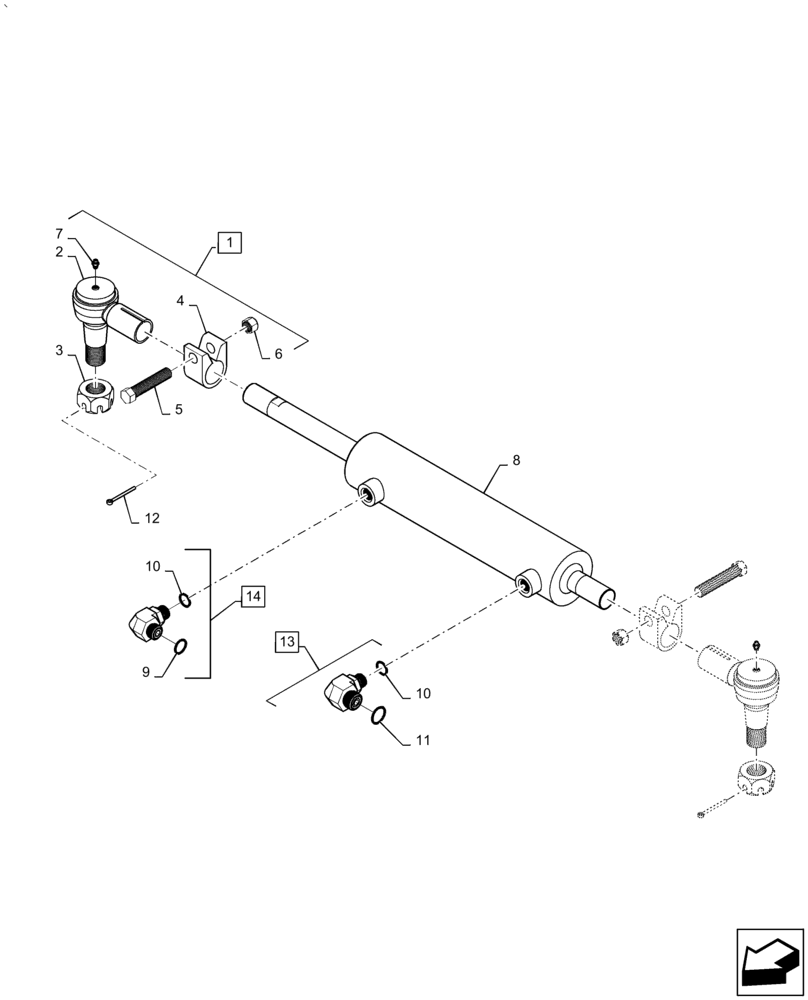

Запчасти Case IH AF4088 (41.216.AO [01]) - STEERING CYLINDER, REAR AXLE, FIXED (41) - STEERING

1

84370704

SOCKET

Vertical, Incl 2 - 7

2шт.

2

87301009

BOOT

Cylinder End

1шт.

3

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

4

446308C91

CLAMP

Assy, Tube

1шт.

5

413-730

BOLT,Hex, 7/16" - 14 x 1-7/8", Gr 5

1шт.

6

231-4117

LOCK NUT,7/16"-14, GB

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

Fitting

1шт.

8

47738693

STEERING CYLINDER

1шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

10

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

11

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

80708

COTTER PIN,1/8" x 1 1/2"

2шт.

13

86579690

ELBOW,90 Degree, 13/16"-18 ORFS x M16 x 1.5 ORB

Incl 10, 11

1шт.

14

86579687

ELBOW,90 Degree, 11/16"-16 x M16 x 1.5 ORB

Incl 9, 10

1шт.
