(80.101.AN[02]) - TIGHTENER, ELEVATOR, STANDARD WEAR

Запчасти Case IH AF4088 (80.101.AN[02]) - TIGHTENER, ELEVATOR, STANDARD WEAR (80) - CROP STORAGE/UNLOADING

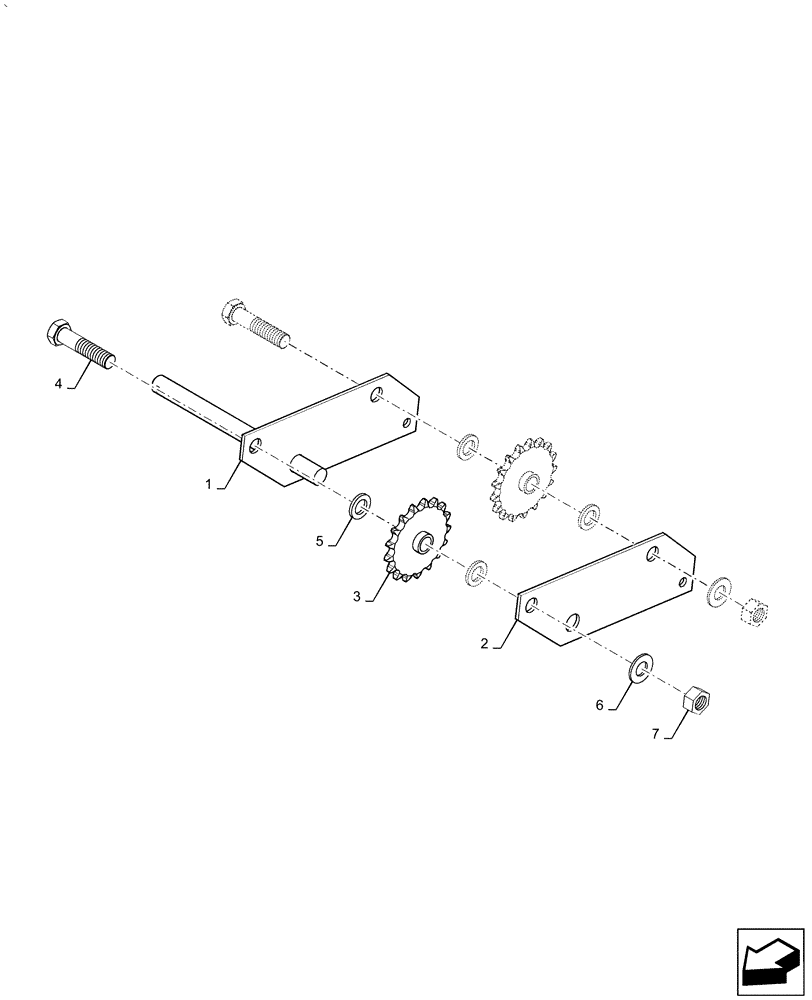

Схема запчастей Case IH AF4088 - (80.101.AN[02]) - TIGHTENER, ELEVATOR, STANDARD WEAR (80) - CROP STORAGE/UNLOADING
5
3
6
5
2
7
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47457069

Weld Assy, Double Idler

SUPPORT

1шт.

2

47457070

Elevator Drive Tightener

PLATE

1шт.

3

298009A1

DRIVE SPROCKET

Tightener

2шт.

4

9847468

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.

5

86588503

WASHER,17mm ID x 28mm OD x 3mm Thk

4шт.

6

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

Lock

2шт.

7

100020

NUT,M16 x 2.0, Cl 8

2шт.
