(80.180.BJ[01]) - COVER ASSY, CROSS GRAIN TANK

Запчасти Case IH AF4088 (80.180.BJ[01]) - COVER ASSY, CROSS GRAIN TANK (80) - CROP STORAGE/UNLOADING

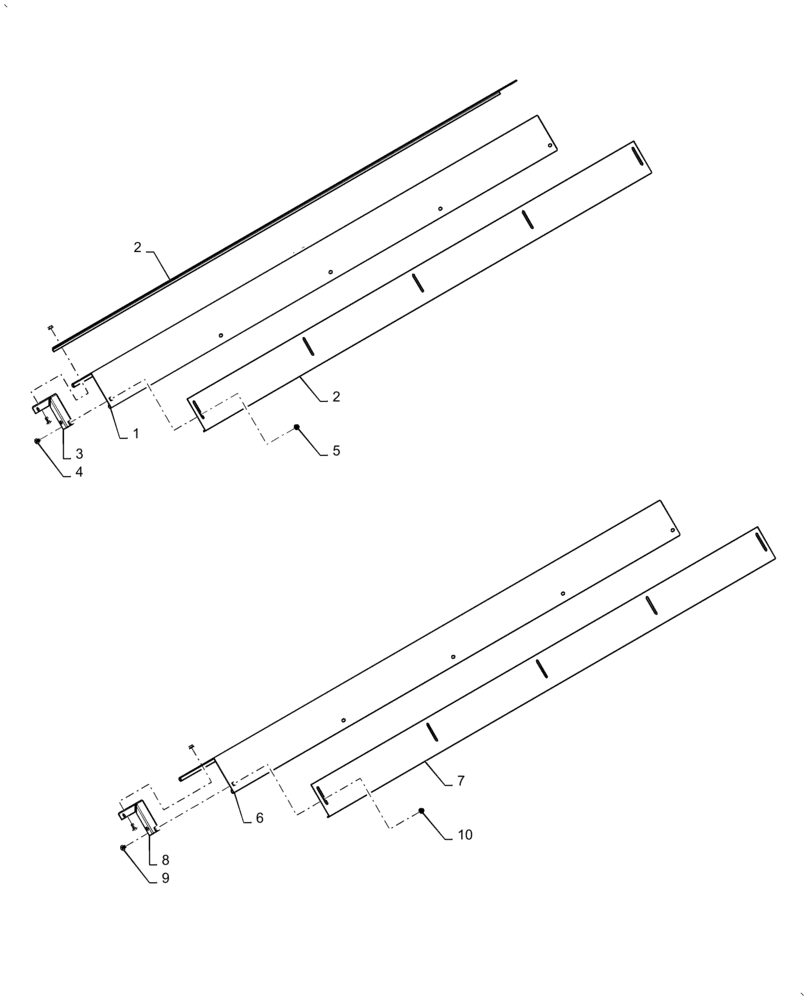

Схема запчастей Case IH AF4088 - (80.180.BJ[01]) - COVER ASSY, CROSS GRAIN TANK (80) - CROP STORAGE/UNLOADING
7
1
6
3
2
5
10
8
9
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47458754

Cross Augers

COVER

1шт.

2

47458756

Extension, Auger

COVER

2шт.

3

47458752

Auger Cover End

SUPPORT

1шт.

4

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

8шт.

5

86507066

FLANGE NUT,M8 x 1.25, Cl 10

8шт.

6

47458758

Rear Cross Auger

COVER

1шт.

7

47458756

Extension, Auger

COVER

1шт.

8

47458752

Auger Cover End

SUPPORT

1шт.

9

87682383

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 10.9

5шт.

10

86507066

FLANGE NUT,M8 x 1.25, Cl 10

5шт.
