(90.118.AX) - HANDRAIL, SERVICE, DECK

Запчасти Case IH AF4088 (90.118.AX) - HANDRAIL, SERVICE, DECK (90) - PLATFORM, CAB, BODYWORK AND DECALS

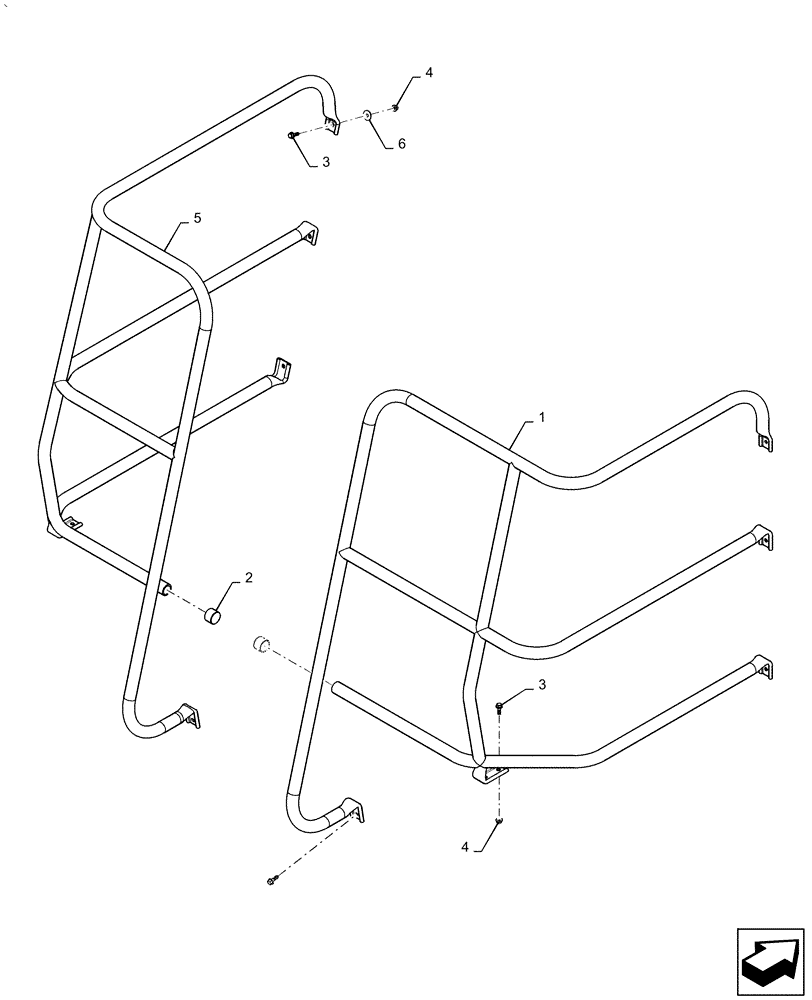

Схема запчастей Case IH AF4088 - (90.118.AX) - HANDRAIL, SERVICE, DECK (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
6
3
1
3
4
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47480033

Weld Assy, RH

HANDRAIL

1шт.

2

87638219

CAP

Vinyl

2шт.

3

86512253

BOLT,Hex Flg, M8 x 25mm

Serrated, Full

12шт.

4

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

9шт.

5

47478334

Weld Assy, LH

HANDRAIL

1шт.

6

87013865

WASHER,9mm ID x 28mm OD x 1.6mm Thk

3шт.
