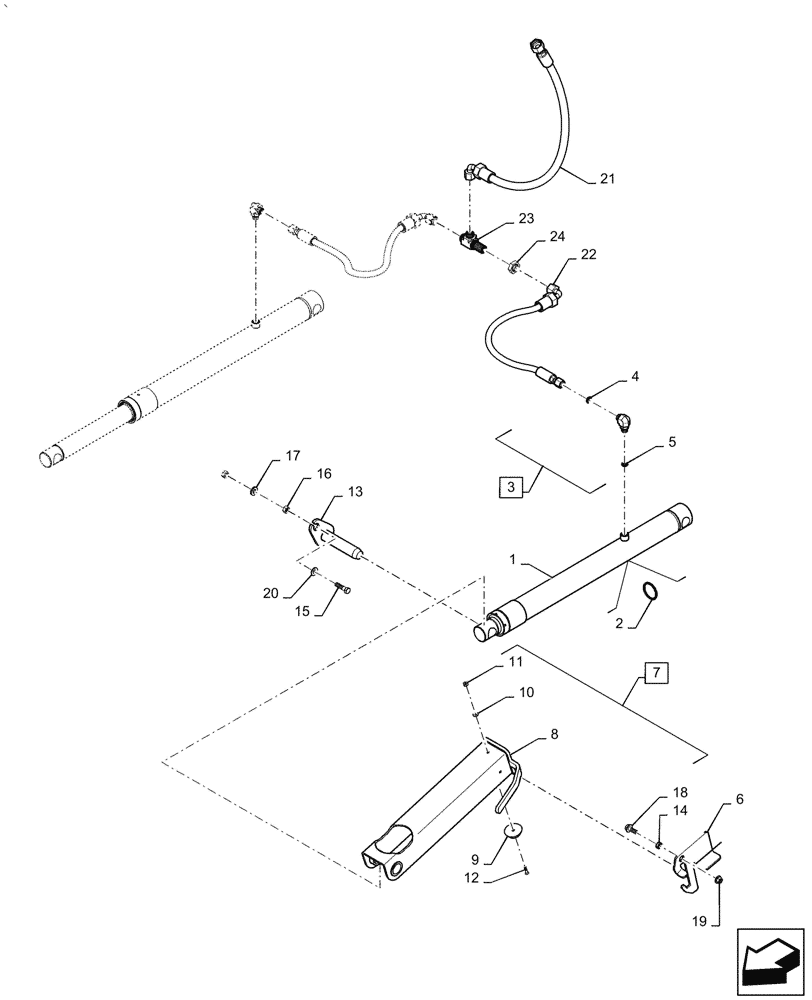

Запчасти Case IH AF4088 (35.410.AH[02]) - HYDRAULIC SYSTEM, FEEDER, LIFT CYLINDER, 63.5MM (35) - HYDRAULIC SYSTEMS

1

47852722

Feeder Lift 65.3mm, Incl 2

HYDRAULIC CYLINDER

2шт.

2

47853401

SEAL KIT

1шт.

3

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Adjuscent, Incl 4, 5

2шт.

4

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

5

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

47527292

Safety Stand

HANGER

1шт.

7

47871593

Stand Assy, Incl 8 - 12

LIFT CYLINDER

1шт.

8

47871595

Weld Assy, Safety Stand, NH

CHANNEL

1шт.

9

47703699

Stand

LINER

3шт.

10

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

11

353308

NUT,M6 x 1.0, Cl 8

Prevaiing Torque

3шт.

12

1520828

SCREW,Flat Hd, Csk, M6 x 30mm, Cl 8.8

Countersunk

3шт.

13

47514432

Weld Assy, Cylinder

PIN

4шт.

14

87387107

BUSHING

Hanger Pivot

1шт.

15

9628065

SCREW,Hex, M12 x 1.75 x 45mm, Cl 8.8

4шт.

16

9706685

NUT,M12 x 1.75, Cl 8

8шт.

17

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

4шт.

18

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

Flange

1шт.

19

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

20

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

21

47466864

Hydraulic Header Lift Work

HOSE

1шт.

22

47466935

Hydraulic Feeder Lift Cylinder Supply

HOSE

2шт.

23

86639081

TEE,1"-14 ORFS, Bulkhead

1шт.

24

86639085

BHD LOCK NUT,1"-14, Bulkhead

1шт.
