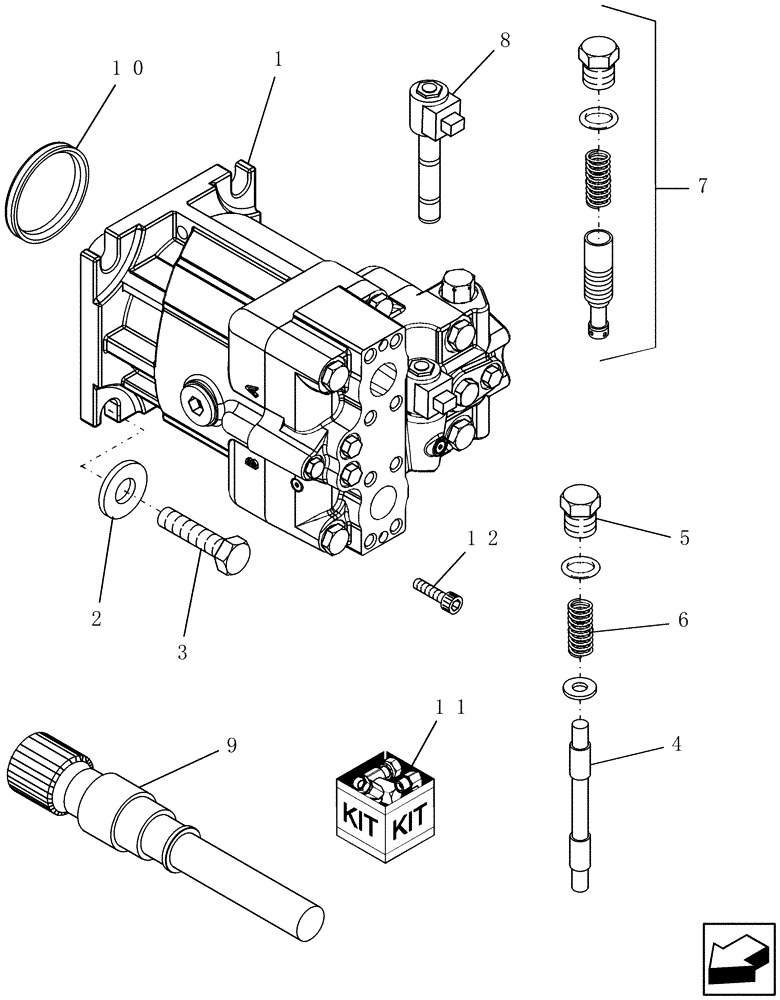

Запчасти Case IH 9010 (29.212.11) - MOTOR, PROPULSION (130 CC), PLANETARY DRIVE (29) - HYDROSTATIC DRIVE

1

87282670

HYDRAULIC MOTOR

130 cc

1шт.

1

87282670R

REMAN-HYD MOTOR

7010 (2/07-9/08), 8010, PIN HAJ200001 THRU HAJ204999 (9/06-9/08), Both AXIAL-FLOW COMBINE, 130 CC

1шт.

1

87282670C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

84058945

WASHER,16.5mm ID x 41mm OD x 6mm Thk

4шт.

3

87027232

BOLT,Hex, M16 x 45mm, Cl 10.9, Full Thd

4шт.

4

84449301

SPOOL

1шт.

5

84806878

RING

Spring Guide

2шт.

6

84806879

SPRING

Shuttle

2шт.

7

87453377

VALVE PRESSURE RELIE

1шт.

8

84807022

SOLENOID VALVE

1шт.

9

84806882

SHAFT

1шт.

10

87283364

SEAL

1шт.

11

84806869

SEAL KIT

1шт.

12

120229

HEX SOC SCREW,M6 x 20mm, Cl 8.8

3шт.
