(31.114.01[02]) - PTO, OUTPUT GEARS, ENGINE GEARBOX - 7010/8010

Запчасти Case IH 9010 (31.114.01[02]) - PTO, OUTPUT GEARS, ENGINE GEARBOX - 7010/8010 (31) - IMPLEMENT POWER TAKE OFF

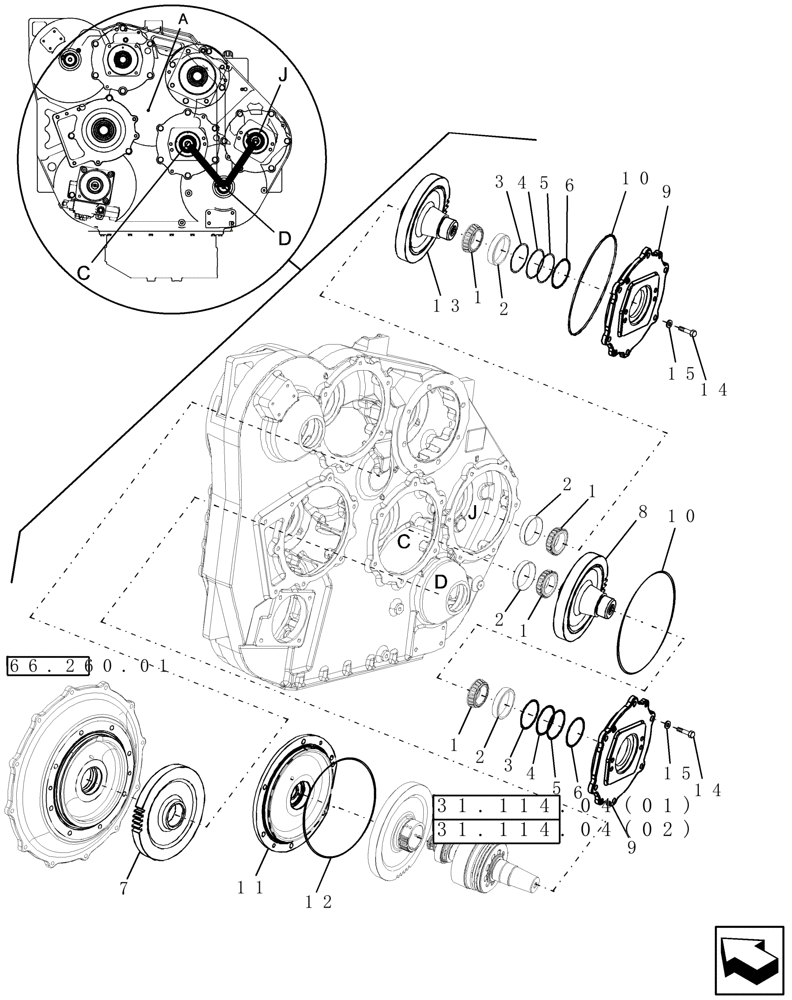

Схема запчастей Case IH 9010 - (31.114.01[02]) - PTO, OUTPUT GEARS, ENGINE GEARBOX - 7010/8010 (31) - IMPLEMENT POWER TAKE OFF
2
8
6
5
13
9
2
1
1
11
14
3
10
5
7
2
4
9
66.260.01
31.114.04(02)
31.114.04(01)
1
2
14
12
15
15
6
3
1
10
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

4шт.

2

364462C1

BEARING CUP,82.55mm OD x 16.51mm W

4шт.

3

378154A1

SHIM,0.127mm Thk

1шт.

4

378155A1

SHIM,0.178mm Thk

1шт.

5

378156A1

SHIM,0.203mm Thk

1шт.

6

378157A1

SHIM,0.508mm Thk

1шт.

7

86975202

GEAR

PTO Input, 58 T

1шт.

8

86975207

GEAR

Pump Drive, 42 T

1шт.

9

87107642

FLANGE

2шт.

10

238-5272

O-RING,0.139" Thk x 9.484" ID, -272, Cl 5, 75 Duro

2шт.

11

87105122

COVER

Driveshaft, Feeder / Header

1шт.

12

238-5277

O-RING,0.139" Thk x 11.484" ID, -277, Cl 5, 75 Duro

1шт.

13

86975208

GEAR

PFC Pump Drive, 48 T

1шт.

14

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

1шт.

15

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.
