(35.310.07) - KIT, FEEDER PUMP CHARGE SUPPLY

Запчасти Case IH 9010 (35.310.07) - KIT, FEEDER PUMP CHARGE SUPPLY (35) - HYDRAULIC SYSTEMS

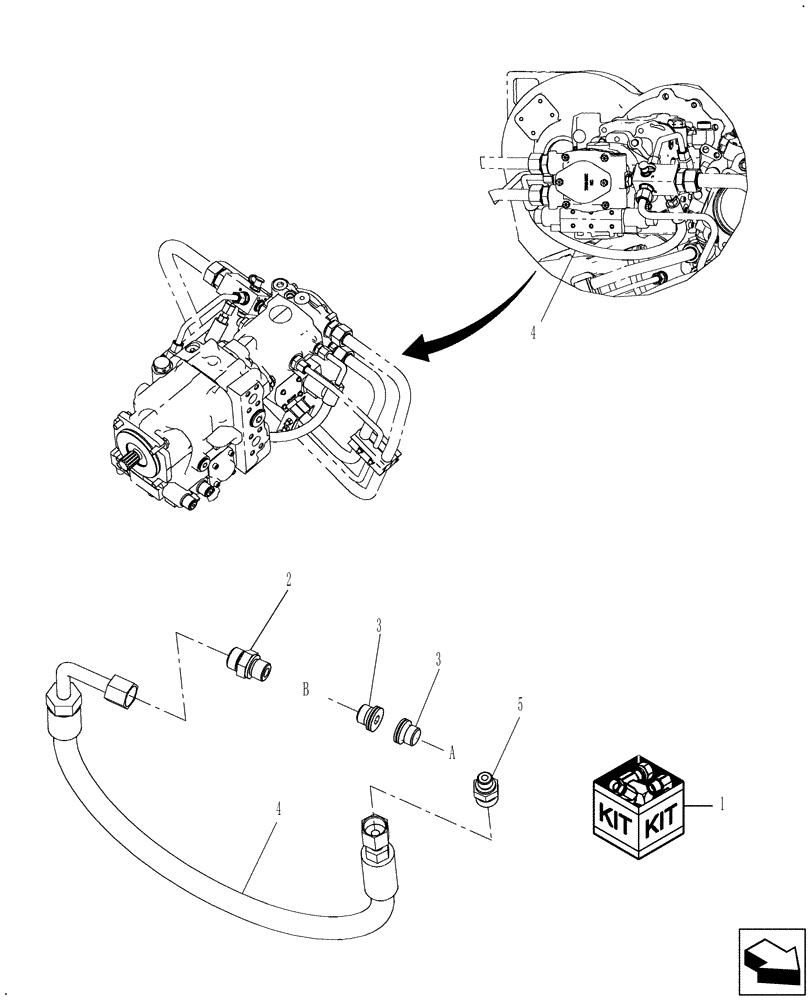

Схема запчастей Case IH 9010 - (35.310.07) - KIT, FEEDER PUMP CHARGE SUPPLY (35) - HYDRAULIC SYSTEMS
b
5
1
2
4
3
a
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87744539

SERVICE KIT

Feeder Pump Charge Supply; Includes: Refs 2 Thru 5, Plus Instructions

1шт.

2

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

1шт.

3

86598046

PLUG,M18 x 1.5 ORB

2шт.

4

87742133

HOSE ASSY.

Feeder Pump Supply

1шт.

5

86579674

HYD CONNECTOR,13/16"-16 ORFS x M14 x 1.5 ORB

1шт.
