1
87535467
HOSE ASSY.
1шт.
2
87535466
A/C HOSE
1шт.
3
87109562
FLEXIBLE HOSE,7.9mm ID x 475mm L
HVAC; L = 475mm
1шт.
4
322358
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
6шт.
5
86997299
HEATER HOSE,15.5mm ID x 15240mm L
Return; 184"
1шт.
Cut To Fit
1шт.
6
86997299
HEATER HOSE,15.5mm ID x 15240mm L
Supply; 211"
1шт.
Cut To Fit
1шт.
7
301803R1
SHUT-OFF VALVE
2шт.
8
87000226
HOSE CLAMP
8шт.
9
84334474
FITTING,1/2"-14 M x 3/8"-18 Fem
1шт.
10
120103
BOLT,M8 x 1.25 x 16mm, Cl 8.8
2шт.
11
87105840
RECEIVER-DRYER
1шт.
11
87280717
RECEIVER-DRYER
1шт.
Scandinavia Only
1шт.
12
86978776
SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"
2шт.
13
87105841
BRACKET
2шт.
14
87396028
HOSE ASSY.
1шт.
15
217-1096
ELBOW,90 Degree, 1/2"-14 Male x 3/8"-18 Female
1шт.
16
515-25254
CLAMP,1", Insul, 1/2" Bolt
3шт.
17
86505868
SERRATED NUT,Hex, M8 x 1.25, Cl 8
2шт.
18
87389077
CONDENSER
1шт.
19
87000223
HOSE CLAMP,22mm ID Static x 15mm W, Spring Type
4шт.
20
529070
CABLE TIE,368.3mm L
CABLE STRAP
5шт.
21
412650
BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk
4шт.
22
412093
SELF-TAP SCREW
1шт.
23
87000227
SWITCH, A/C HIGH PRE
1шт.
24
NS
NOT SERVICED
Sheathing
1шт.
25
120104
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
4шт.
26
412479
BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8
2шт.
27
87542153
BRACKET
1шт.
28
140045
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
4шт.
29
9706690
NUT,M8 x 1.25, Cl 8
2шт.
30
43442
NUT
2шт.
31
87107420
GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk
1шт.
32
43139
BOLT,M10 x 1.5 x 25mm, Cl 8.8
3шт.
33
100016
NUT,M10 x 1.5, Cl 8
1шт.
34
86976974
GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk
1шт.
35
87589867
FLUID
Dye, Leak Detection
1шт.
36
87000220
HOSE CLAMP
1шт.
37
86511146
VALVE,Shrader
Valve
1шт.
38
86511149
CAP
1шт.
39
86511147
CONTROL VALVE
Charge High Side
1шт.
40
86511148
CAP
1шт.

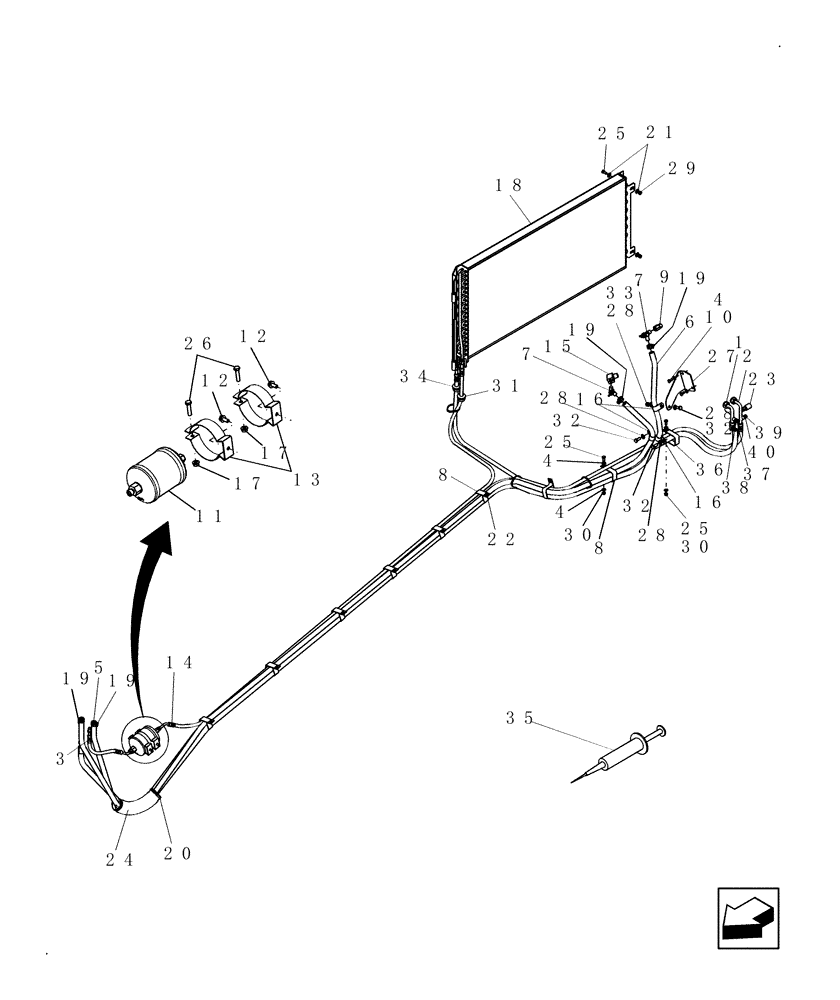

![Схема запчастей Case IH 9010 - (50.200.07[01]) - A/C & HEATER HOSES - 7010 (50) - CAB CLIMATE CONTROL](https://www.partsell.ru/storage/images/caseih/682571.png)
