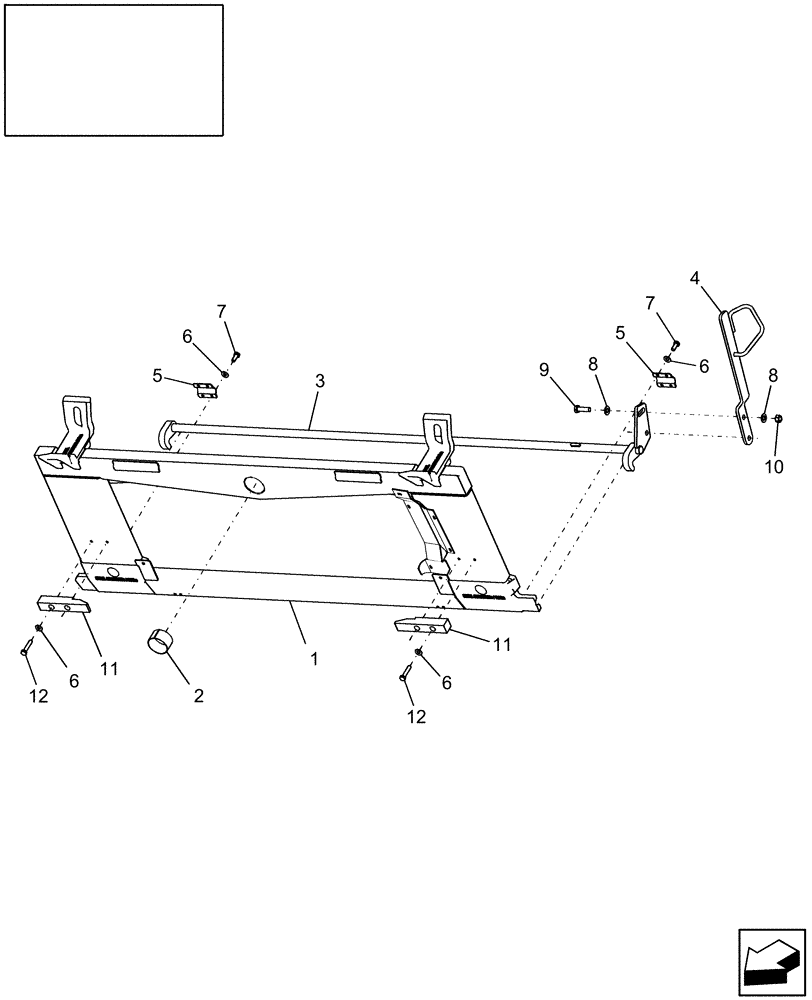

Запчасти Case IH 9010 (60.110.02) - LATERAL TILT FEEDER, PIVOT FRONT FACE HARDWARE - 9010 (60) - PRODUCT FEEDING

1

87597096

FRAME

1шт.

2

86995533

BEARING CARRIER,76.29mm ID x 72.18mm OD x 47.63mm L

1шт.

3

87583645

LATCH ASSY.

1шт.

4

87583643

LEVER ASSY.

1шт.

5

87107674

CLAMP

2шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

8

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

9

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

2шт.

10

825-1416

NUT,M16, Cl 8

2шт.

11

84144529

SHIELD

Plate, Strip-Off

2шт.

12

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

4шт.
