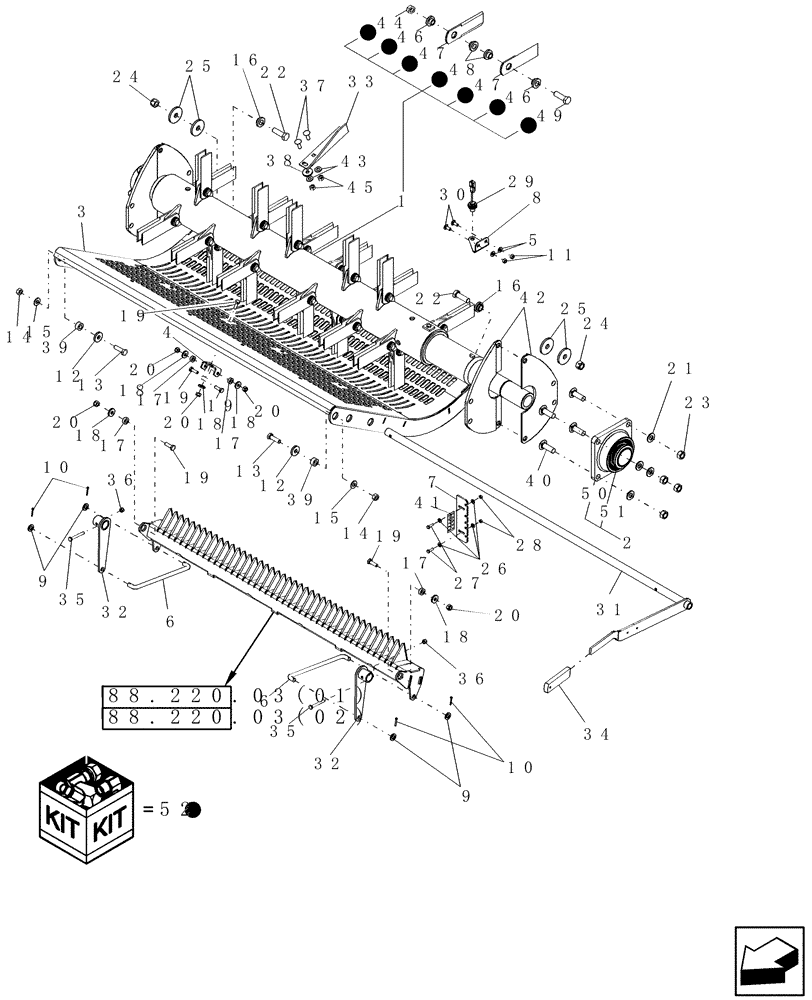

Запчасти Case IH 9010 (88.210.12[01]) - STRAW CHOPPER, FLAIL, EU ONLY - PRIOR TO PIN HAJ202001 - 7010/8010 (88) - ACCESSORIES

1

87316357

ROTOR

Flail, W/Blades

1шт.

1

87316363

STRAW CHOPPER

L/Blades

1шт.

2

87109088

BEARING ASSY

1шт.

Please Read Figure Note

1шт.

3

87282893

PAN

1шт.

4

87592357

BRACKET

U

1шт.

4/07 & After

1шт.

Used W/New Modular Style Knife Bar

1шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

6

87282824

LINK

2шт.

7

87109324

PLATE

1шт.

8

87107532

BRACKET

1шт.

9

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

10

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

4шт.

11

9706690

NUT,M8 x 1.25, Cl 8

2шт.

12

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

2шт.

13

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

2шт.

14

9706685

NUT,M12 x 1.75, Cl 8

2шт.

15

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

16

87000251

BUSHING,17mm ID x 34mm OD x 12mm L

2шт.

17

86997386

BUSHING,11.15mm ID x 22.23mm OD x 8mm L

5шт.

18

86592700

WASHER,10.5mm ID x 28mm OD x 4mm Thk

5шт.

19

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

5шт.

20

100037

LOCK NUT,M10 x 1.5, Cl 8

5шт.

21

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

22

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

23

392530

NUT,M16, Cl 10

4шт.

24

86512555

NUT,M16 x 2, Cl 10

2шт.

25

84007183

WASHER,16.5mm ID x 58mm OD x 6mm Thk

Hardened

4шт.

26

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

27

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

28

9706755

NUT,M6, Cl 8

2шт.

29

87342073

SENSOR

Straw Chopper Speed

1шт.

30

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

31

87281621

HANDLE

1шт.

32

87108765

ARM

2шт.

33

87510546

ANGLE

Discharge Vane

1шт.

34

357545

HANDLE GRIP

1шт.

35

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

2шт.

36

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

37

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

38

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

1шт.

39

699963

SPACER

2шт.

40

9845488

BOLT

Carriage, Short Neck, CL 10.9, M16 x 2 x50

4шт.

41

87280049

DECAL

Chopper Knives

1шт.

42

87282748

SEAL

2шт.

43

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

44

87030549

NUT,M10 x 1.5, Cl 10

22шт.

45

100016

NUT,M10 x 1.5, Cl 8

2шт.

46

1994758C2

BUSHING,10.5mm ID x 30mm OD x 15mm L

44шт.

47

NSS

NOT SOLD SEPARAT

Blade; See Ref 52

44шт.

48

NSS

NOT SOLD SEPARAT

44шт.

49

84437627

BOLT,M10 x 55mm, Cl 10.9

22шт.

50

NSS

NOT SOLD SEPARAT

Flange Housing

1шт.

51

NSS

NOT SOLD SEPARAT

Bearing

1шт.

52

87623449

PACKAGE,SERVICE

Incl Refs 44(4), 46(8), 47(8), 48(8), & 49(4)

1шт.
