(90.115.10[02]) - KIT, FAN SHIELD - 8010/9010

Запчасти Case IH 9010 (90.115.10[02]) - KIT, FAN SHIELD - 8010/9010 (90) - PLATFORM, CAB, BODYWORK AND DECALS

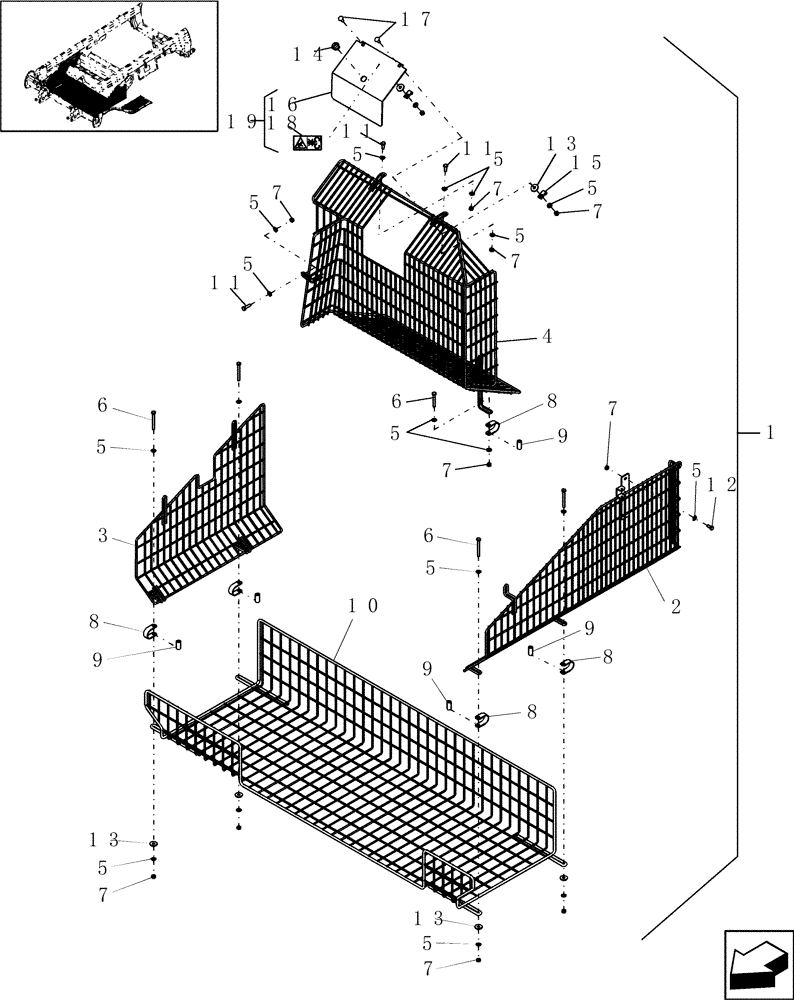

Схема запчастей Case IH 9010 - (90.115.10[02]) - KIT, FAN SHIELD - 8010/9010 (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
5
7
18
8
1
7
9
5
8
8
4
5
5
5
10
12
9
6
6
13
9
14
5
5
13
5
9
7
19
5
7
17
7
3
15
11
5
6
11
7
5
11
7
8
7
16
13
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84083563

DIA KIT, HARVESTER

Fan Shield; Includes: Refs 2 Thru 20, As Indicated

1шт.

1

84083564

DIA KIT, HARVESTER

Fan Bottom Shield; Includes: Refs 3 & 10, Plus Hardware

1шт.

2

87283331

SHIELD

LH

1шт.

3

87283014

SHIELD

RH, Front

1шт.

4

87284192

SHIELD

Includes: Cover, Ref 20

1шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

19шт.

6

331175

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

5шт.

7

9706690

NUT,M8 x 1.25, Cl 8

11шт.

8

87283569

STRAP

5шт.

9

87283567

BUSHING

5шт.

10

87283016

SHIELD

Bottom

1шт.

11

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

3шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

13

140041

WASHER,M8 x 28mm OD x 3mm Thk

6шт.

14

143347A1

LATCH

1шт.

15

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

16

87318426

SHIELD

1шт.

17

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

18

84011345

DECAL

Safety Chain Entangle

1шт.

19

87323910

SHIELD

Includes: 84011345

1шт.
