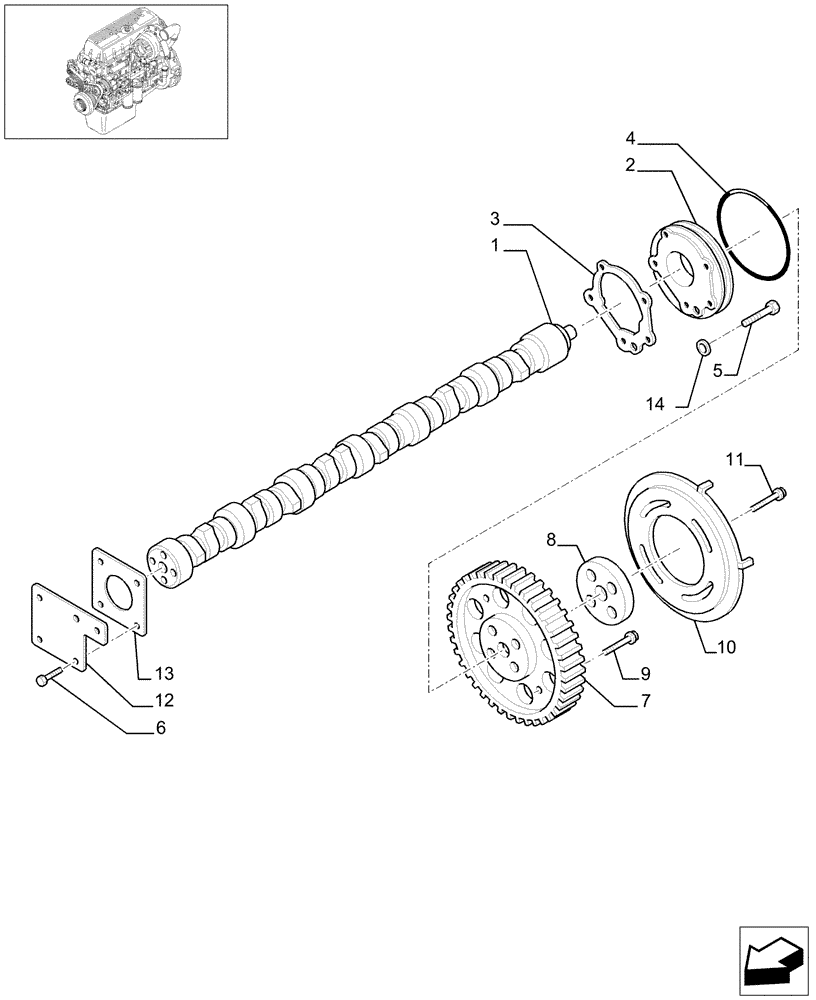

Запчасти Case IH AFX8010 (B.10.A.40[1]) - CAMSHAFT (504004356) B - Power Production

1

500333869

CAMSHAFT

1шт.

1

504092824

CAMSHAFT

Tier 3, Start Serial: HAJ106401

1шт.

2

500322294

PLATE

1шт.

3

99448739

GASKET

1шт.

4

14466981

O-RING,0.139" Thk x 5.109" ID, -251, Cl 7, 75 Duro

M129.8 x 3.53

1шт.

5

504002590

SCREW

M8 x 1.25 x 25

5шт.

5

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

Tier 3, Start Serial: HAJ106401

5шт.

6

16587124

FLANGE BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

M10 x 25

4шт.

6

16587125

SCREW,M10

Tier 3, Start Serial: HAJ106401

4шт.

7

99450035

GEAR

1шт.

8

98496024

SPACER

1шт.

9

99431774

BOLT

4шт.

10

500336396

PLATE

1шт.

11

500397562

BOLT

4шт.

12

500370032

COVER

1шт.

13

500370033

GASKET

1шт.

14

17096824

LOCK WASHER

Tier 3, Start Serial: HAJ106401

5шт.
