(B.30.A.25) - AIR CLEANER & FILTERS - ENGINE

Запчасти Case IH AFX8010 (B.30.A.25) - AIR CLEANER & FILTERS - ENGINE B - Power Production

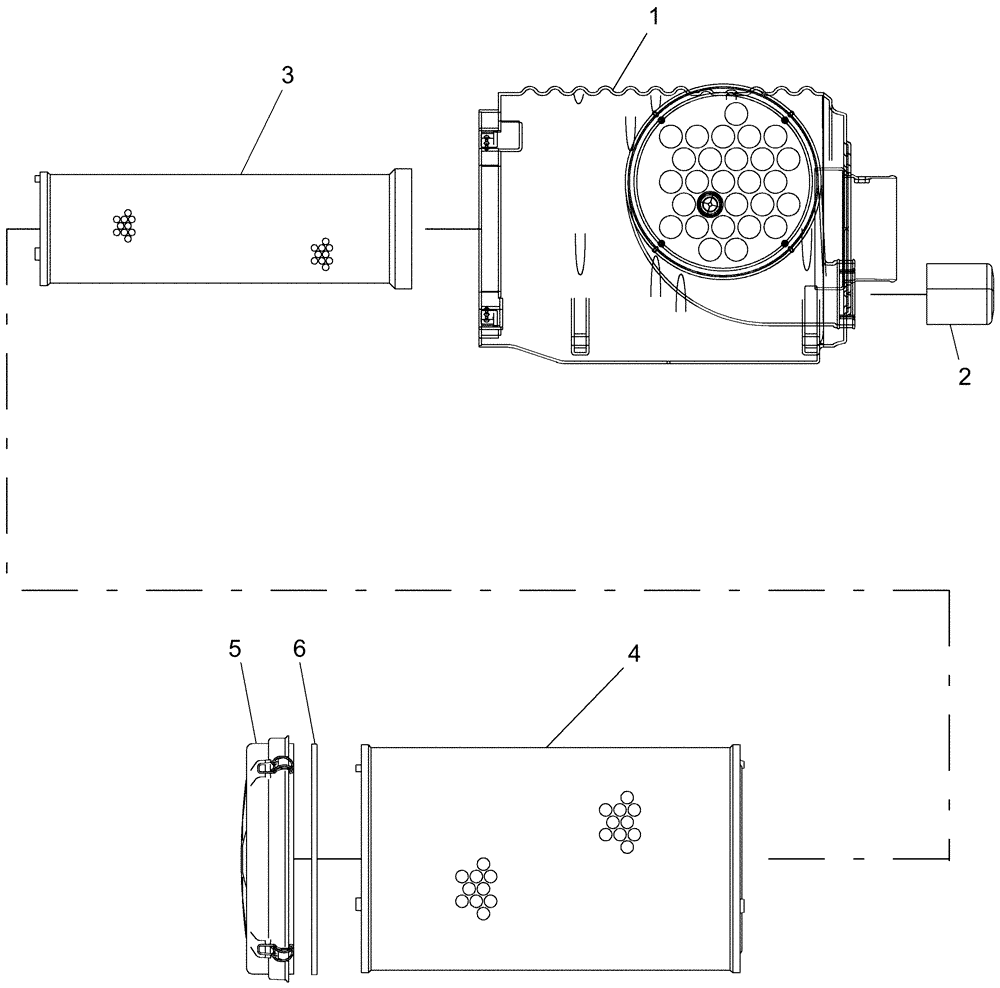

Схема запчастей Case IH AFX8010 - (B.30.A.25) - AIR CLEANER & FILTERS - ENGINE B - Power Production
3
1
2
6
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86998330

HOUSING

Complete, Incl 2 - 6

1шт.

2

86998331

CHECK VALVE

Incl Seal, NSS

1шт.

3

86998332

AIR FILTER,Secondary, 133.1mm ID x 175.1mm OD x 541.7mm L, Pleatloc

Inner

1шт.

4

86998333

AIR FILTER,Primary, 172.3mm ID x 332.4mm OD x 555.2mm L, Pleatloc

Outer

1шт.

5

87414982

COVER

Includes: Ref. 6

1шт.

6

87414805

GASKET,336.8mm ID x 347.4mm OD x 11mm Thk

1шт.
