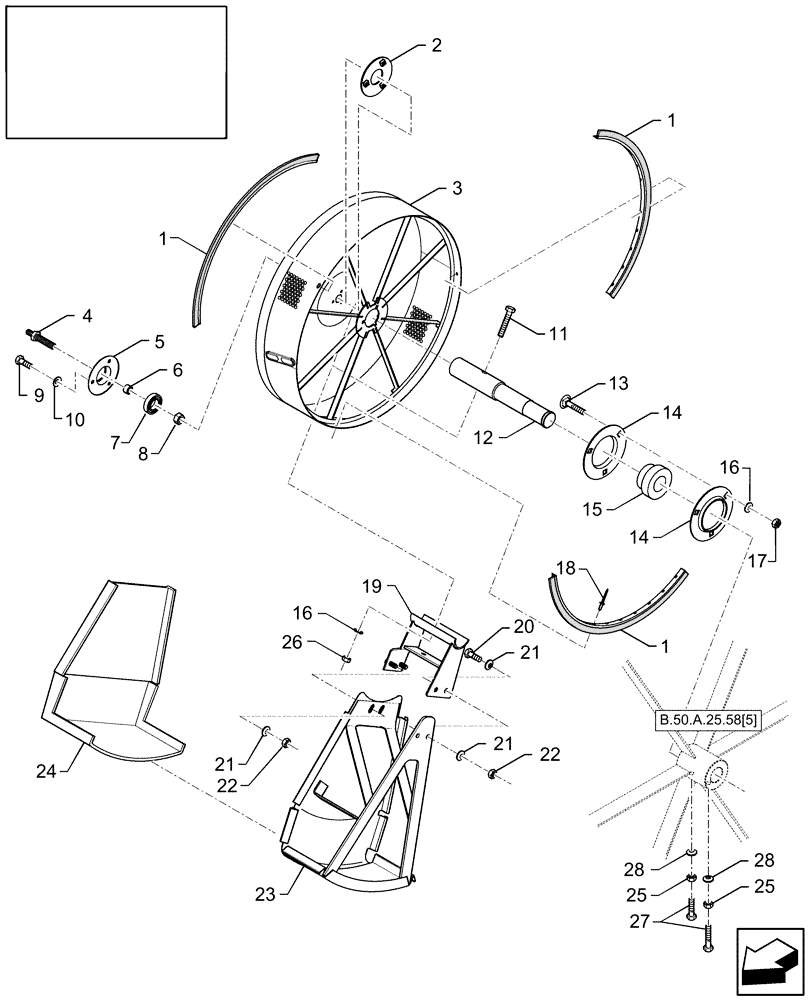

Запчасти Case IH AFX8010 (B.50.A.25.58[6]) - REVOLVING DUSTSCREEN B - Power Production

1

84057430

BRUSH

3шт.

2

84071581

PLATE

1шт.

3

84458357

SCREEN

9.468" Deep

1шт.

4

84032079

BOLT,M12 x 77.50mm, Cl 8.8

1шт.

5

365018

BEARING HOUSING

1шт.

6

434182

BUSHING,12mm ID x 17mm OD x 12.1mm L

1шт.

7

362804

BALL BEARING,17mm ID x 40mm OD x 12mm W

1шт.

8

9706685

NUT,M12 x 1.75, Cl 8

1шт.

9

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

3шт.

10

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

11

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

12

84448897

SHAFT

1шт.

13

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

3шт.

14

36403

BEARING HOUSING

2шт.

15

322360

BALL BEARING,35mm ID x 72mm OD x 19mm W

1шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

17

100016

NUT,M10 x 1.5, Cl 8

1шт.

18

PL

PROCURE LOCALLY

1шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

22

89706690

NUT,M8, Cl 8

4шт.

23

84069815

CHUTE

1шт.

24

87601497

INSULATOR

1шт.

25

320648

NUT,M10, Cl 8

2шт.

26

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

27

391136

SET SCREW,Hex, M10 x 40mm, Cl 8.8

2шт.

28

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

2шт.
