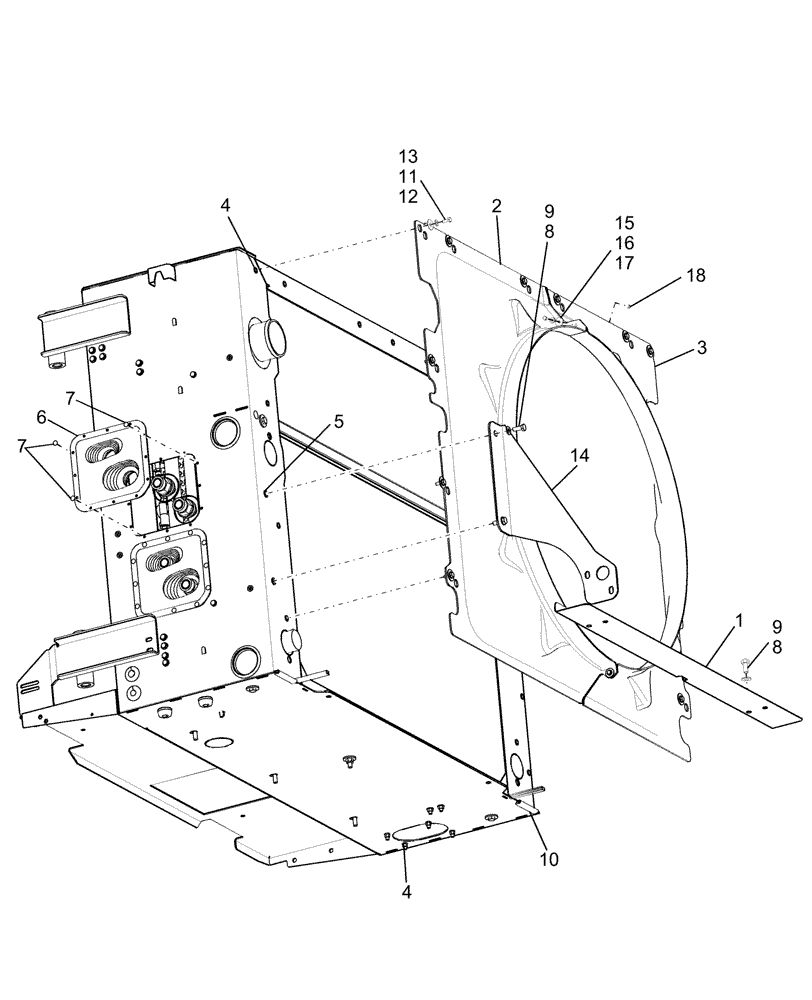

Запчасти Case IH AFX8010 (B.50.A.32[03]) - FAN SHROUD B - Power Production

1

87109228

PANEL

Blockoff

1шт.

2

87108862

SHROUD

L.H.

1шт.

3

87108863

SHROUD

R.H.

1шт.

4

86976590

INSERT

8mm Well

21шт.

5

86976968

INSERT,Rivnut, M10 x 1.5 x 19mm OD

10mm Well

2шт.

6

87106648

BOOT

Insulator

2шт.

7

87107418

FASTENER

24шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

9

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

10

291186

PROTECTION STRIP,9.9mm W

Edging

1шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

12шт.

13

86979986

WASHER,0.34" ID x 1.25" OD x 0.06" Thk

12шт.

14

86976557

SUPPORT

1шт.

15

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

16

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

17

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

18

9706755

NUT,M6, Cl 8

2шт.
