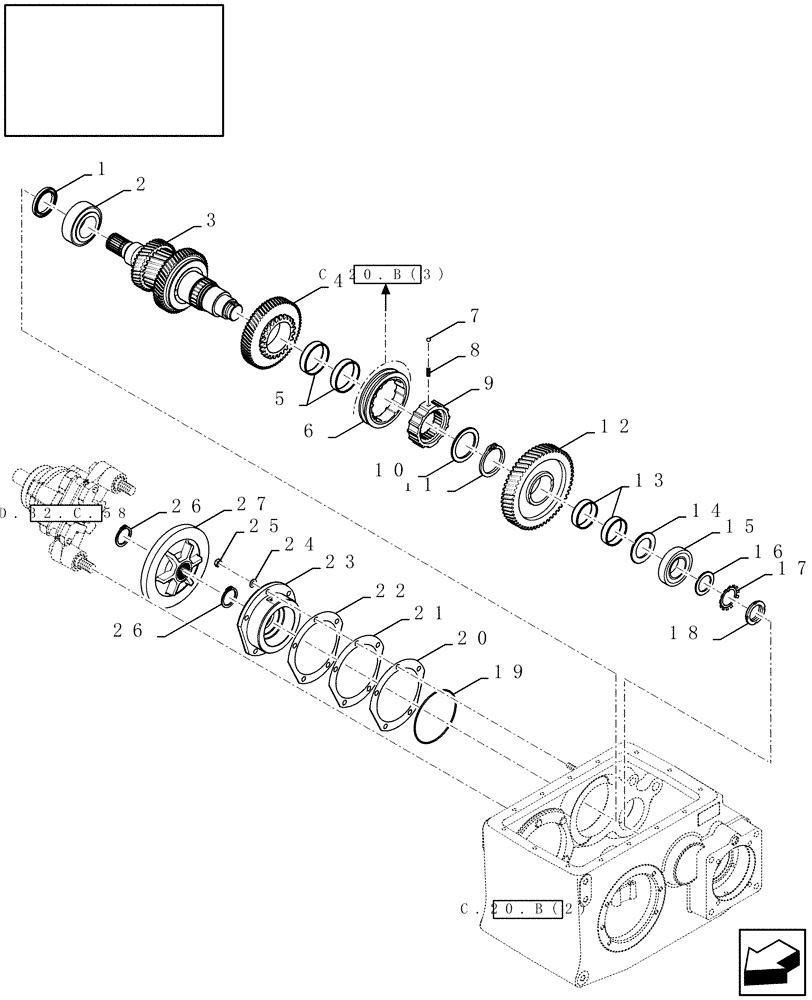

Запчасти Case IH AFX8010 (C.20.B.43[2]) - MECHANICAL TRANSMISSION, DRIVE SHAFT C - Power Train

1

84017986

SEAL,60mm ID x 80mm OD x 8mm Thk

1шт.

2

84074759

TAPERED BEARING,60mm ID x 110mm OD x 38mm W

1шт.

3

84433499

SHAFT

20T

1шт.

4

84433264

GEAR

1шт.

5

84071622

BEARING SET,80mm ID x 86mm OD x 40mm W

Set of 2

1шт.

6

84433358

SYNCHRONIZER

1шт.

7

84041521

BALL

2шт.

8

84041522

SPRING,8.5mm OD x 23.1mm L

2шт.

9

84433352

GEAR

1шт.

10

84072052

THRUST WASHER,72mm ID x 95mm OD x 5.25mm Thk

1шт.

11

84078051

SNAP RING,M72, Ext

1шт.

12

84433278

GEAR

Driven

1шт.

13

87317816

BEARING SET,68mm ID x 74mm OD x 40mm W

Was 84043299

1шт.

14

84071394

THRUST WASHER,55mm ID x 85mm OD x 4.75mm Thk

1шт.

15

84320593

TAPERED BEARING,55mm ID x 100mm OD x 26.75mm W

1шт.

16

84071395

THRUST WASHER,45mm ID x 65mm OD x 4mm Thk

1шт.

17

80410880

LOCKING RING

1шт.

18

9615771

BEARING LOCK NUT,44.026 mm ID x 65 mm OD

1шт.

19

84078052

O-RING,3mm Thk x 144mm ID, 72 Duro

1шт.

20

84072115

SHIM,150mm ID x 200mm OD x 0.5mm Thk

1шт.

21

84072116

SHIM,150mm ID x 200mm OD x 0.2mm Thk

2шт.

22

84072118

SHIM,150mm ID x 200mm OD x 0.05mm Thk

4шт.

23

84071119

FLANGED BEARING

1шт.

24

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

5шт.

25

9706685

NUT,M12 x 1.75, Cl 8

5шт.

26

370007

SNAP RING,M45, Ext

2шт.

27

84071123

BRAKE DISC,224mm OD

1шт.
