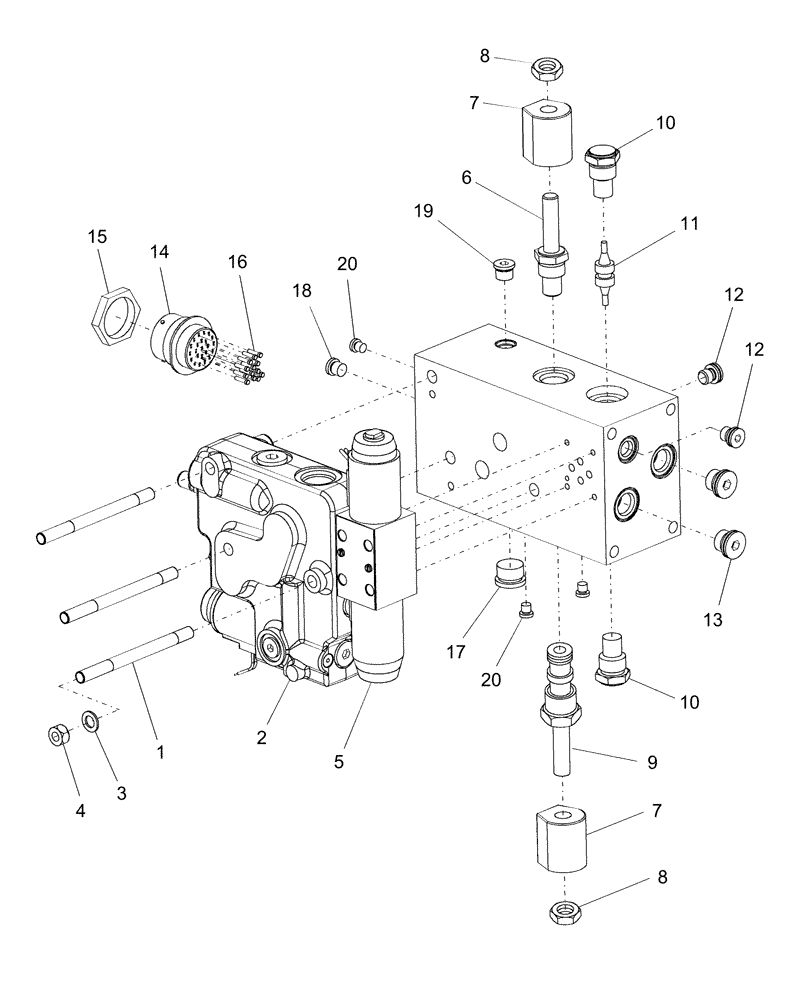

Запчасти Case IH AFX8010 (A.10.A.18[6]) - VALVE, FEEDER STACK, STANDARD A - Distribution Systems

87109740

HYDRAULIC VALVE

STD. - Includes Ref. 1-20

1шт.

1

190716A1

STUD

Threaded

3шт.

2

87281778

VALVE

Reel Drive

1шт.

2

87281778R

REMAN-HYD VALVE

Reel Drive

1шт.

2

87281778C

CORE-VALVE HYD

Return Number

1шт.

3

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

5

87434014

CONTROL VALVE

Three Position, Four Way

1шт.

6

87436627

VALVE

Normally Closed

1шт.

7

86995302

SOLENOID

Coil, 12 Volt

2шт.

8

195683A1

JAM NUT,1/2"-20

2шт.

9

190711A1

VALVE

Three Way, Two Position

1шт.

10

87433998

CHECK VALVE,7/8" - 14

2шт.

11

149940C1

PISTON

1шт.

12

221573A1

PLUG,Hex Soc, M12 x 1.5, ORB

2шт.

13

221578A1

PLUG,M18 x 1.5 ORB

2шт.

14

319151A1

CONNECTOR, ELEC

CONNECTOR

1шт.

15

86619907

NUT,1.6875"-18

1шт.

16

453133C1

PLUG

13шт.

17

86625138

PLUG,7/18" - 14

Tube OD = 5/8"

1шт.

18

278548

PLUG,Hex, 7/16"-20 ORB

Tube OD = 1/4"

1шт.

19

9625178

PLUG,9/16" - 18 ORB

Tube OD = 3/8"

1шт.

20

86632547

PLUG,Hex, 5/16"-24 ORB

Tube OD = 1/8"

3шт.
